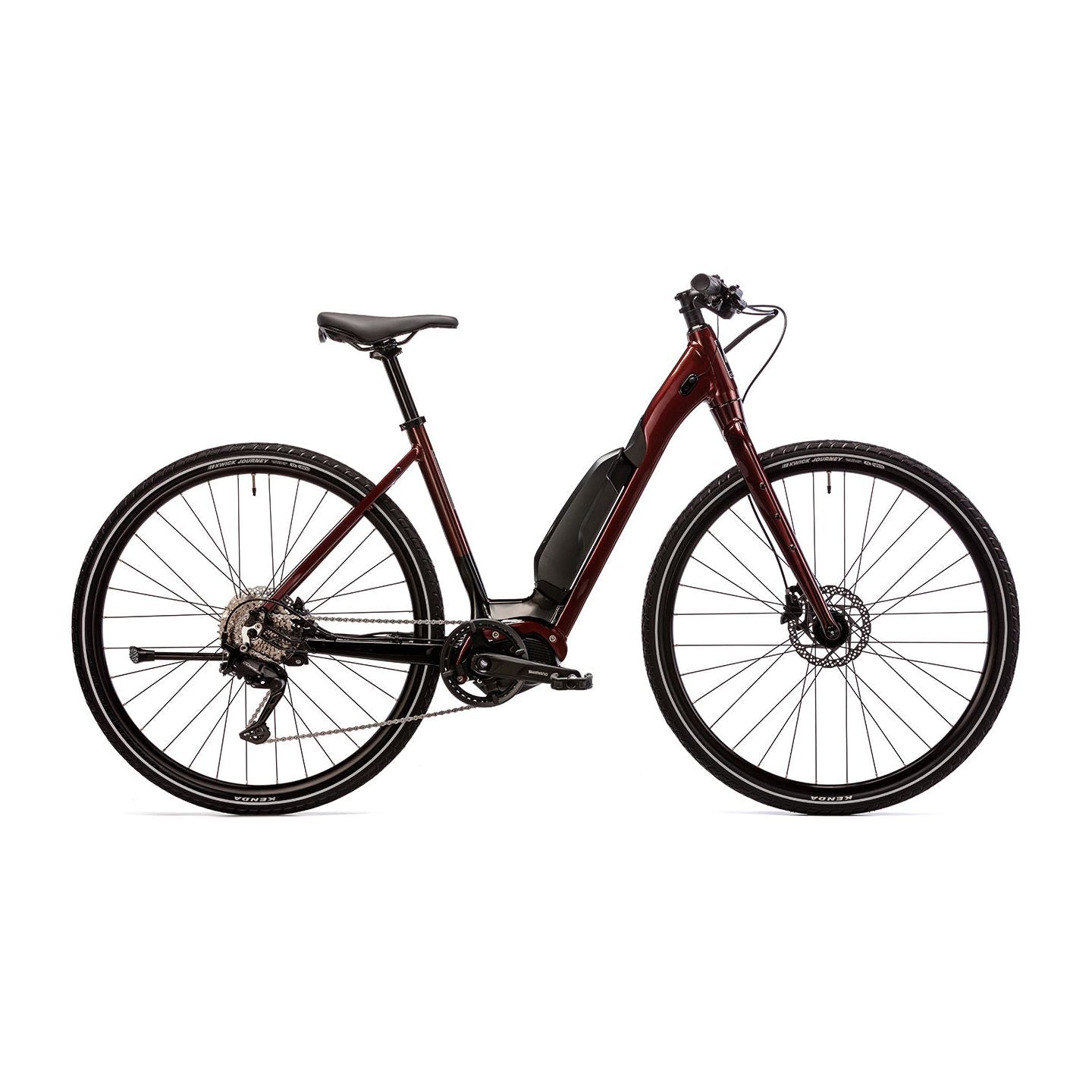

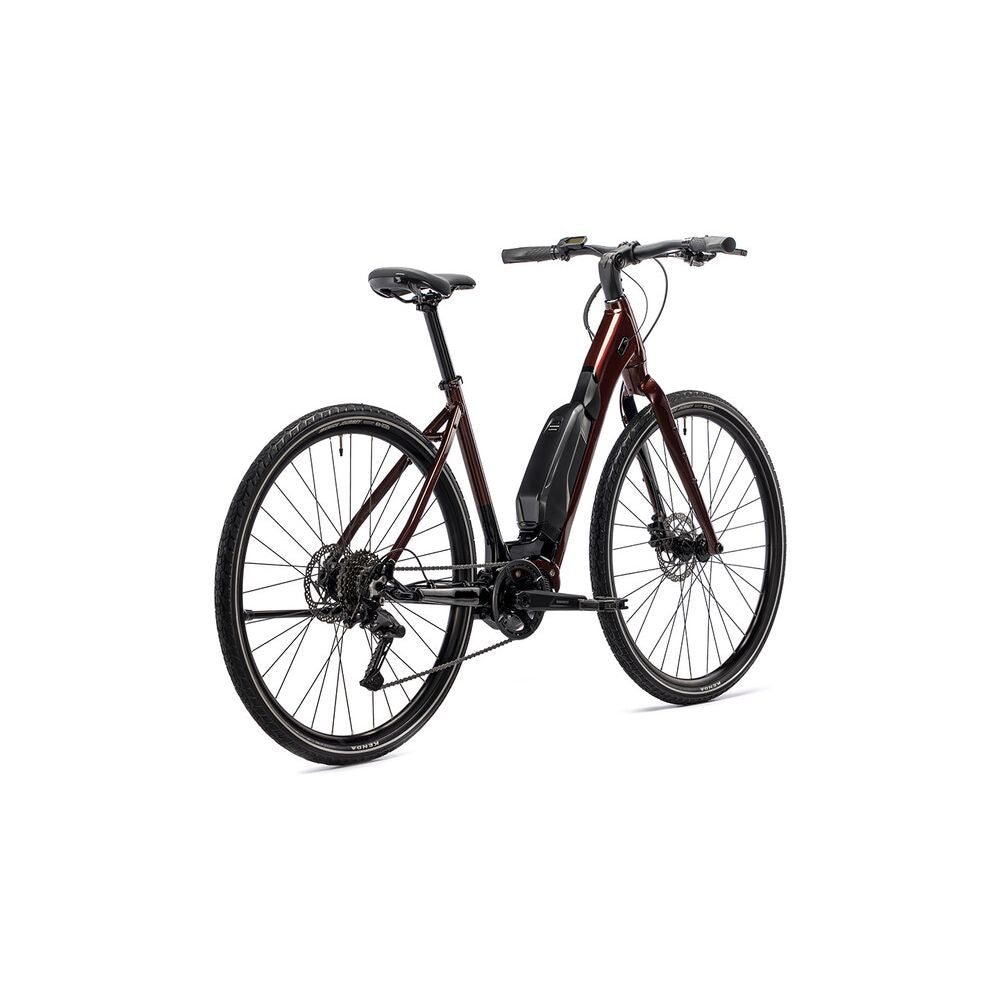

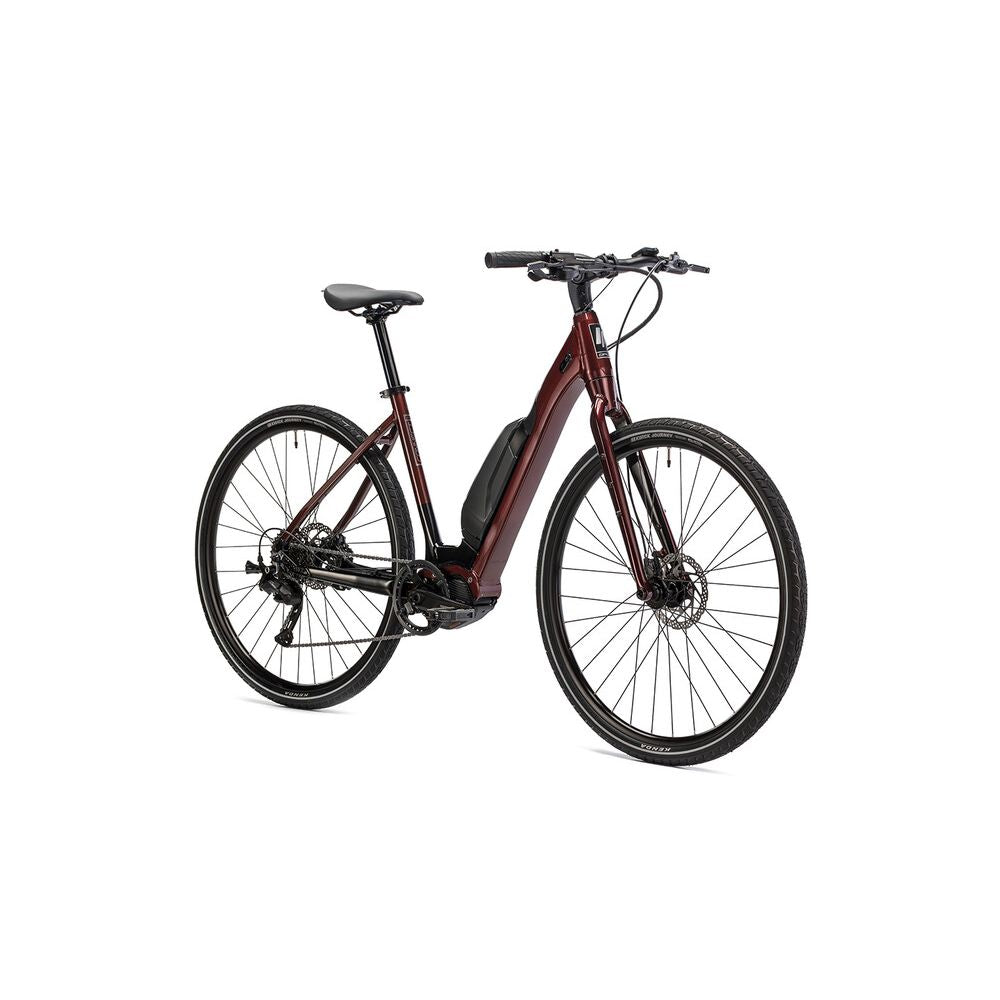

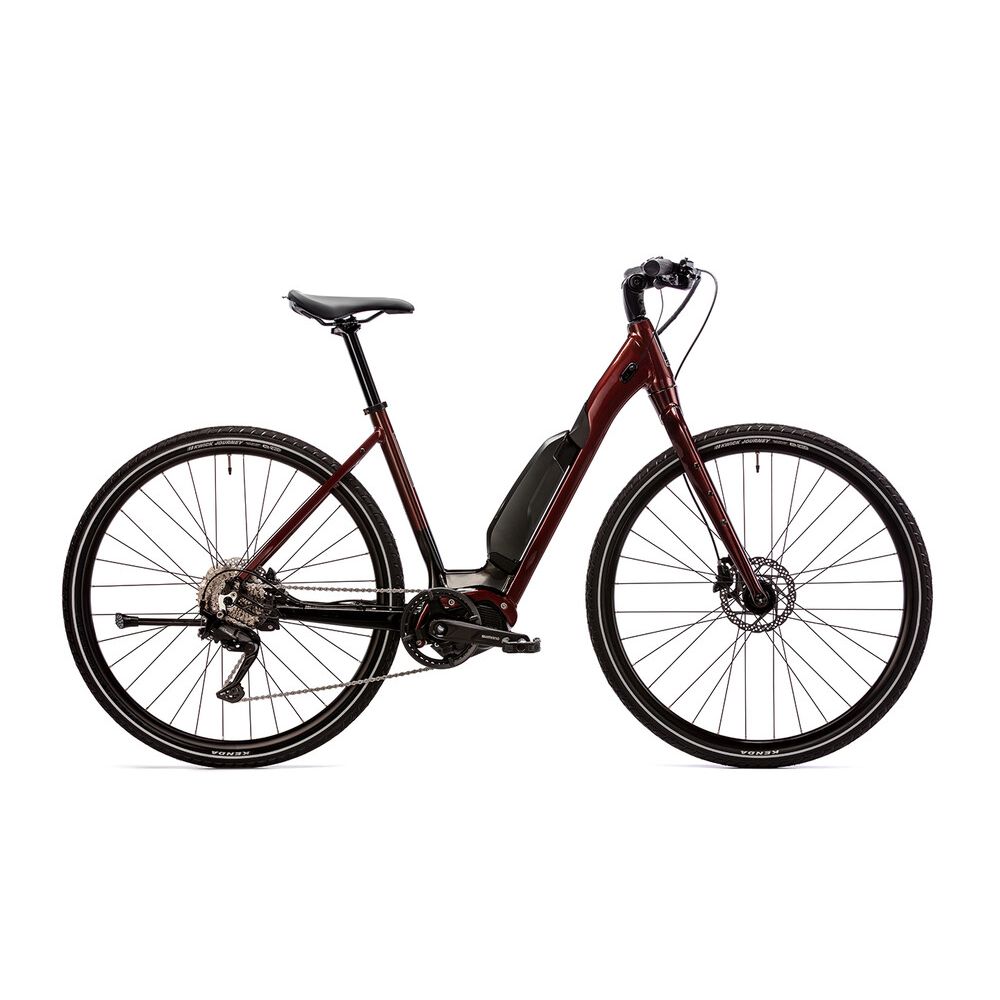

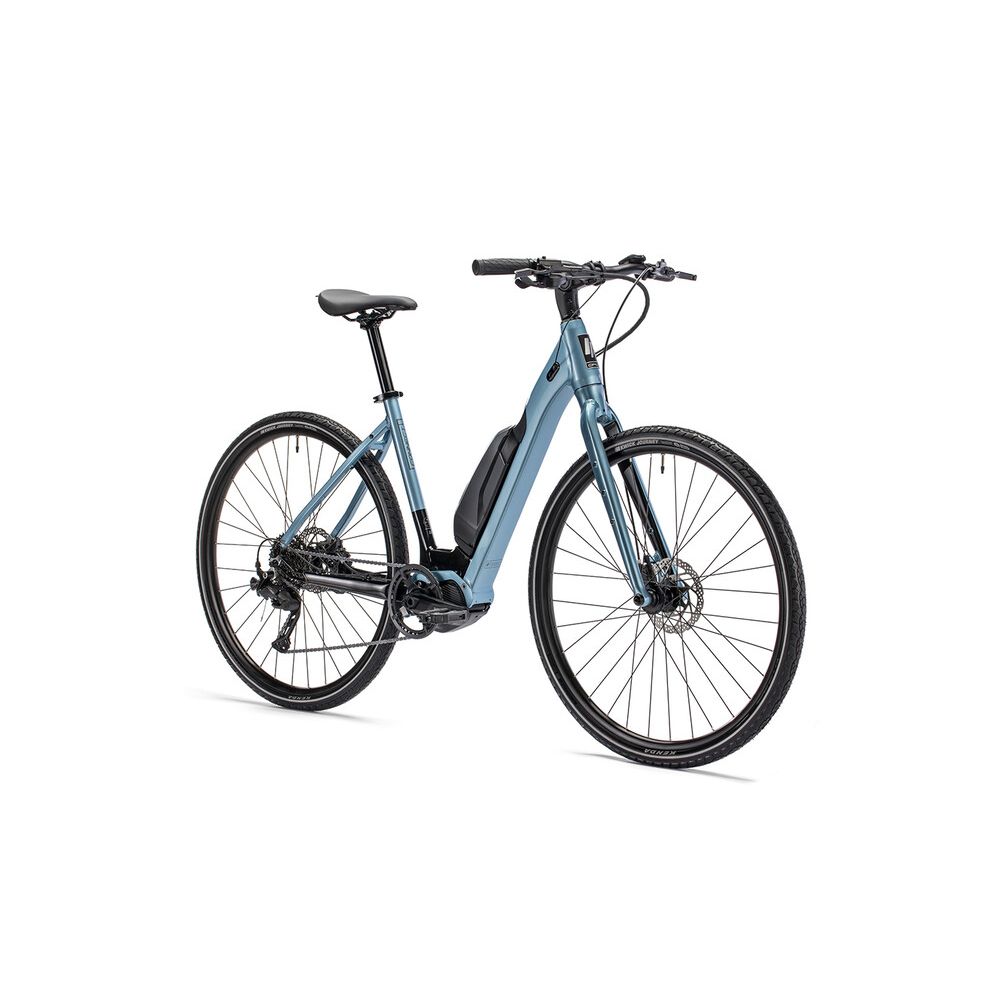

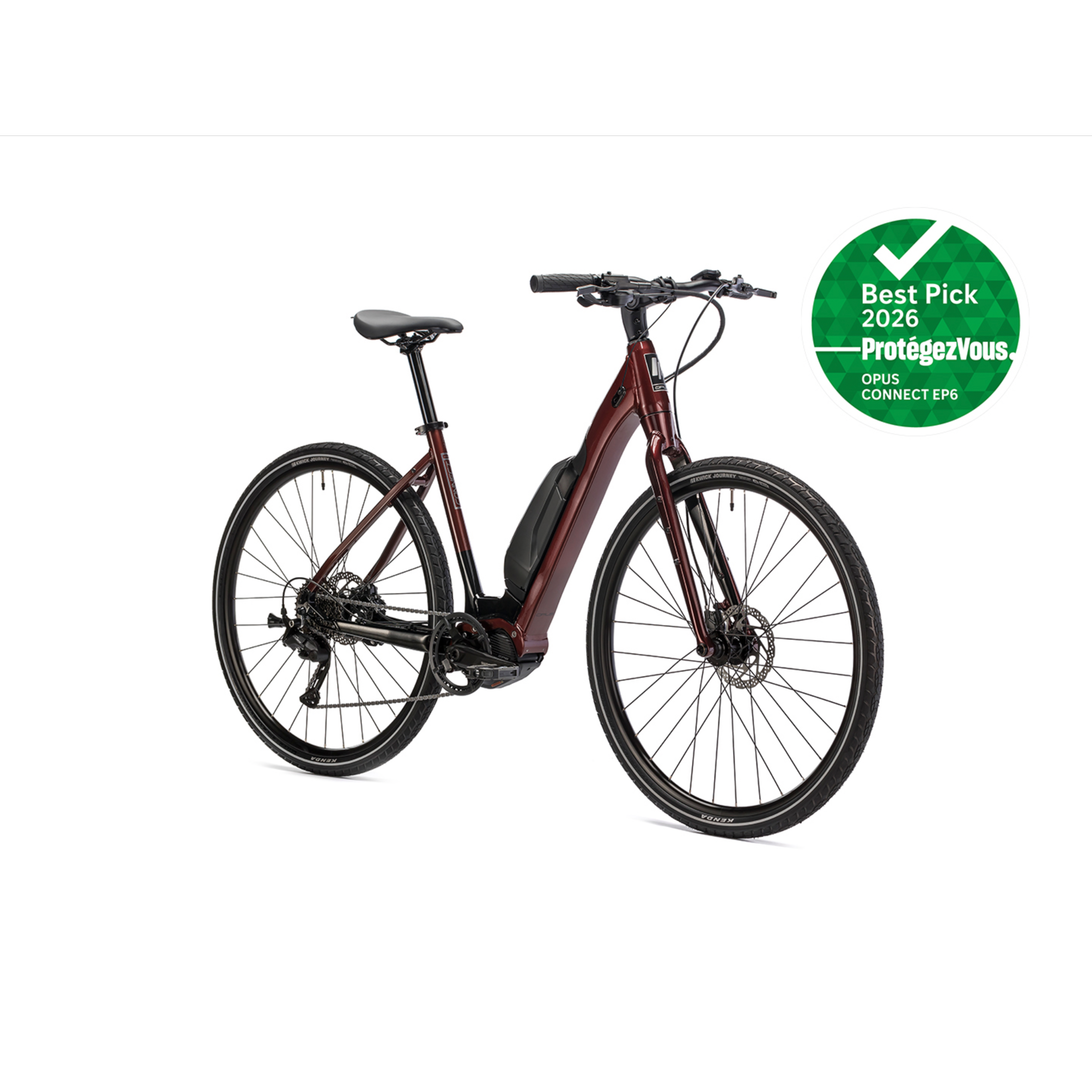

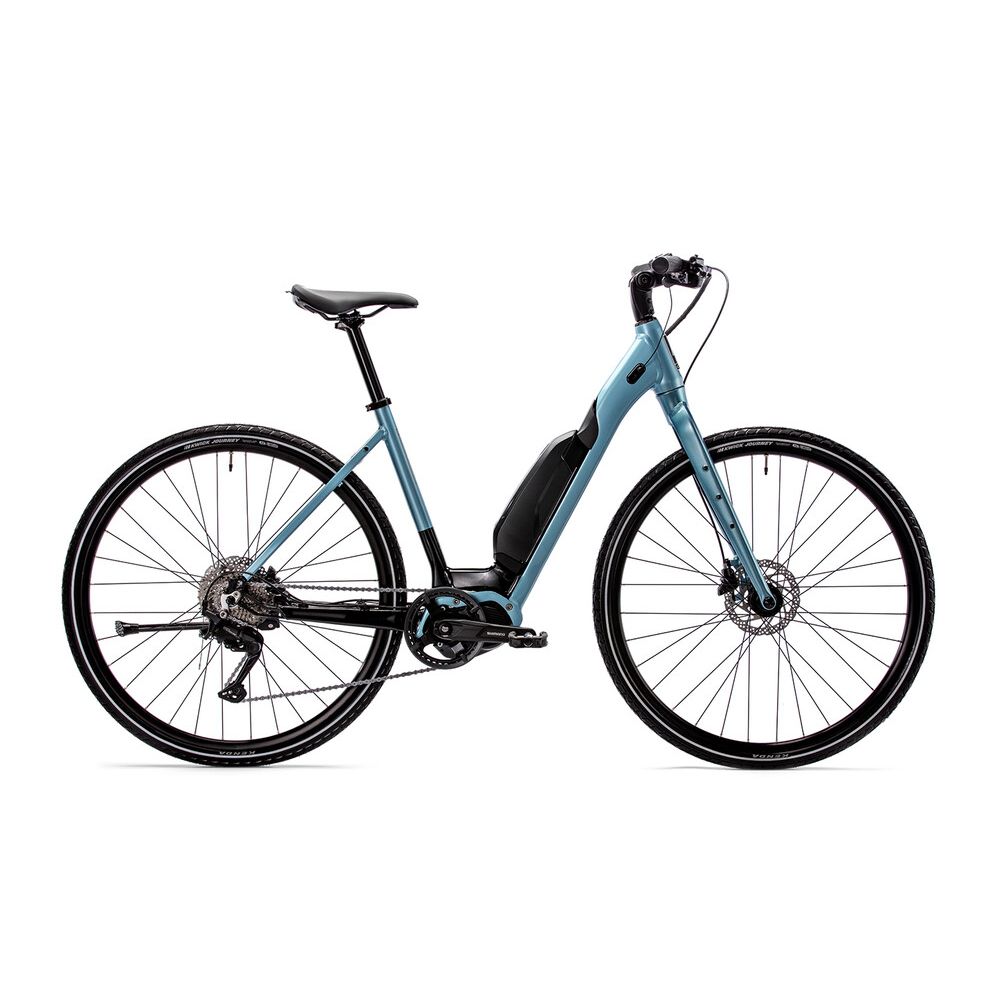

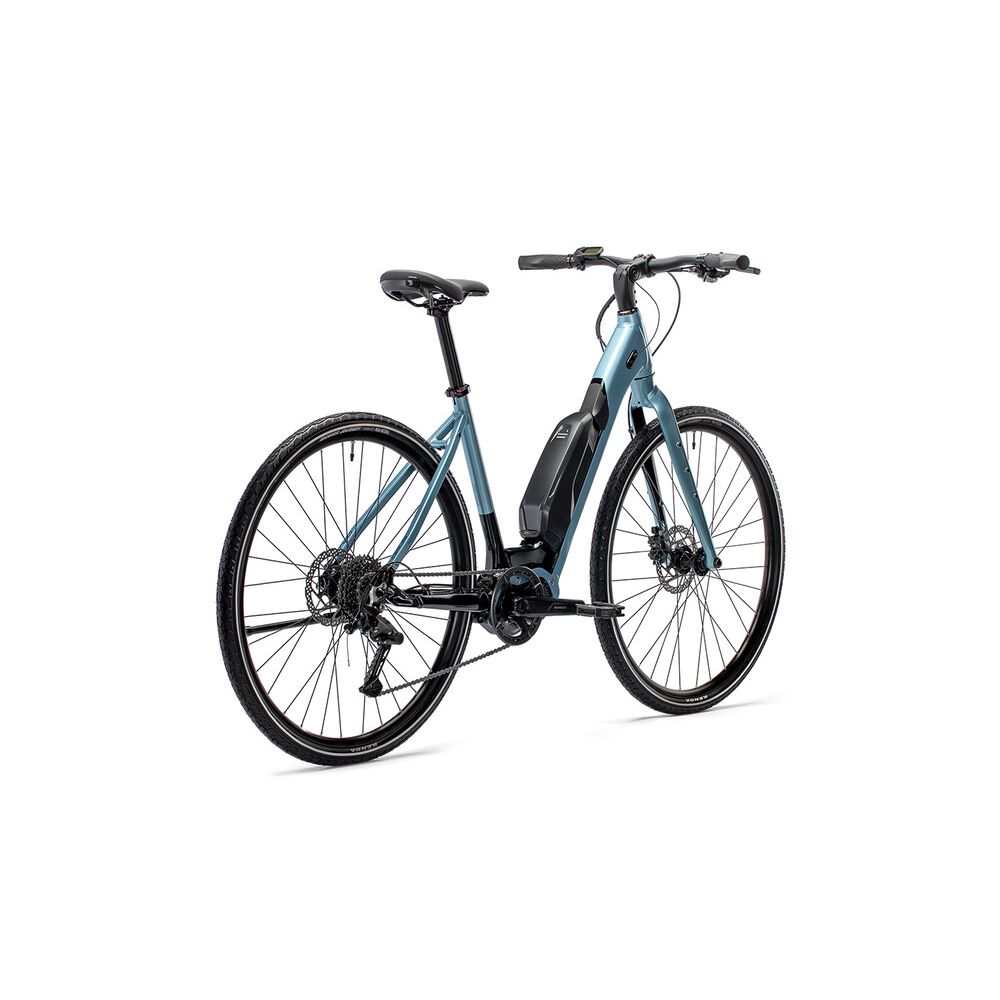

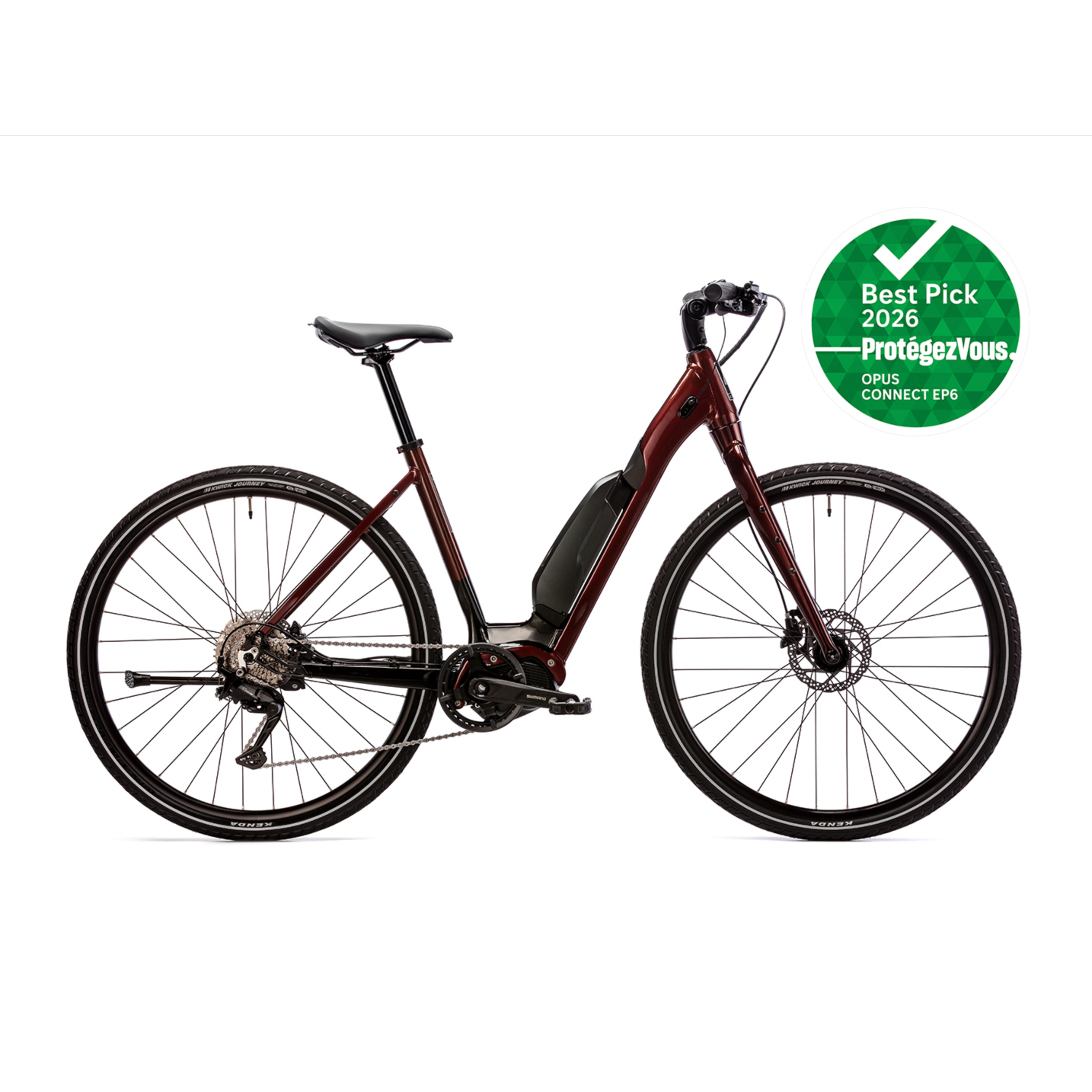

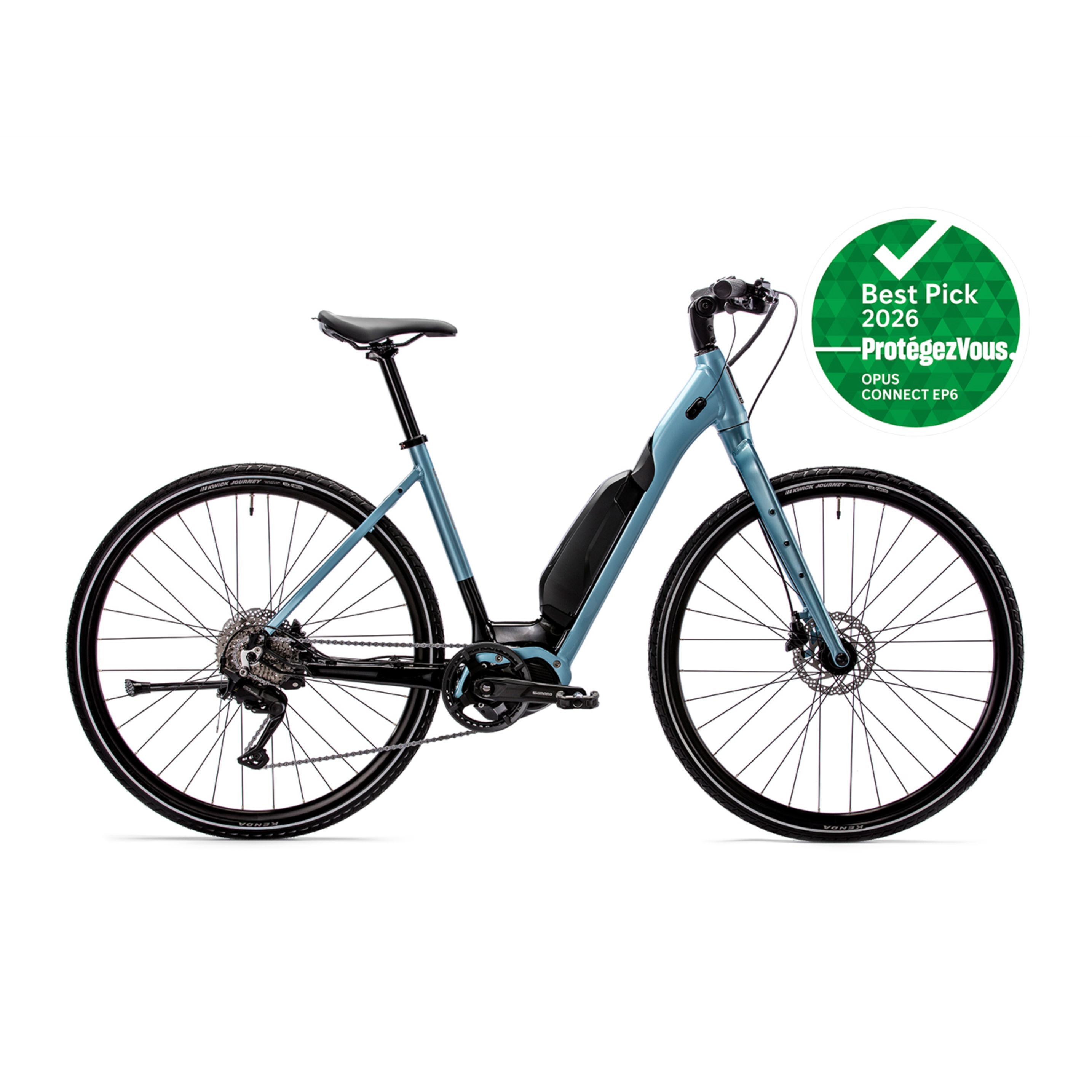

CONNECT EP6

OUR CLASSIC CONNECT, IN A MORE MUSCULAR PACKAGE

Features

- A low-step frame that’s easy to mount and that everyone will appreciate
- Lightweight 6061 aluminum fork
- Shimano CUES 1x9 drivetrain
- Shimano hydraulic disc brakes
- Shimano EP600 and Shimano EN-604 418Wh battery

Specifications

Frame Aluminum
Fork Tapered aluminum 1-1/2 to 1-1/8 in
Sizes S-M-L
Shifters Shimano CUES U4010 9-speed
Front Derailleur N/A
Rear Derailleur Shimano CUES U4020
Brakes Shimano BR-MT201 – hydraulic discs
Brake Levers Shimano BL-MT201
Crankset Shimano FC-EM600
Chainrings 38
Bottom Bracket N/A
Cassette KMC Linkglide 11-36
Chain KMC eGlide EPT
Headset FSA Orbit sealed integrated
Handlebar Promax 25mm rise
Stem Promax adjustable 90mm
Grips/Bar Tape Velo ERGO dual-density
Saddle Opus Electric with handle
Seatpost Promax 30.9 x 350/300mm
Wheels/Rims Alexrims GX8
Hubs Bear Pawls
Tires Continental Contact Urban 700x42
Pedals VP
Other Shimano EP600 250W 85Nm
Other Shimano EN-604 418Wh 36V 11.6Ah battery
Other SC-EN500 controller with integrated display

Geometry

Size S M L
Size (cm)
Rider height (± 5cm) 155 165 178
Rider height (± 2") 5'2" 5'6" 5'10"
Seat tube 440 480 520
Top tube 590 605 620
Head tube 145 145 155
Head angle 71 71 71
Seat tube angle 73 73 73
Chainstays 440 440 440
BB drop 65 65 65
Stack 623 623 632
Reach 400 415 427
Standover 480 480 480
Handlebar width 580 580 580
Stem length 110 110 110
Crank length 170 170 170
