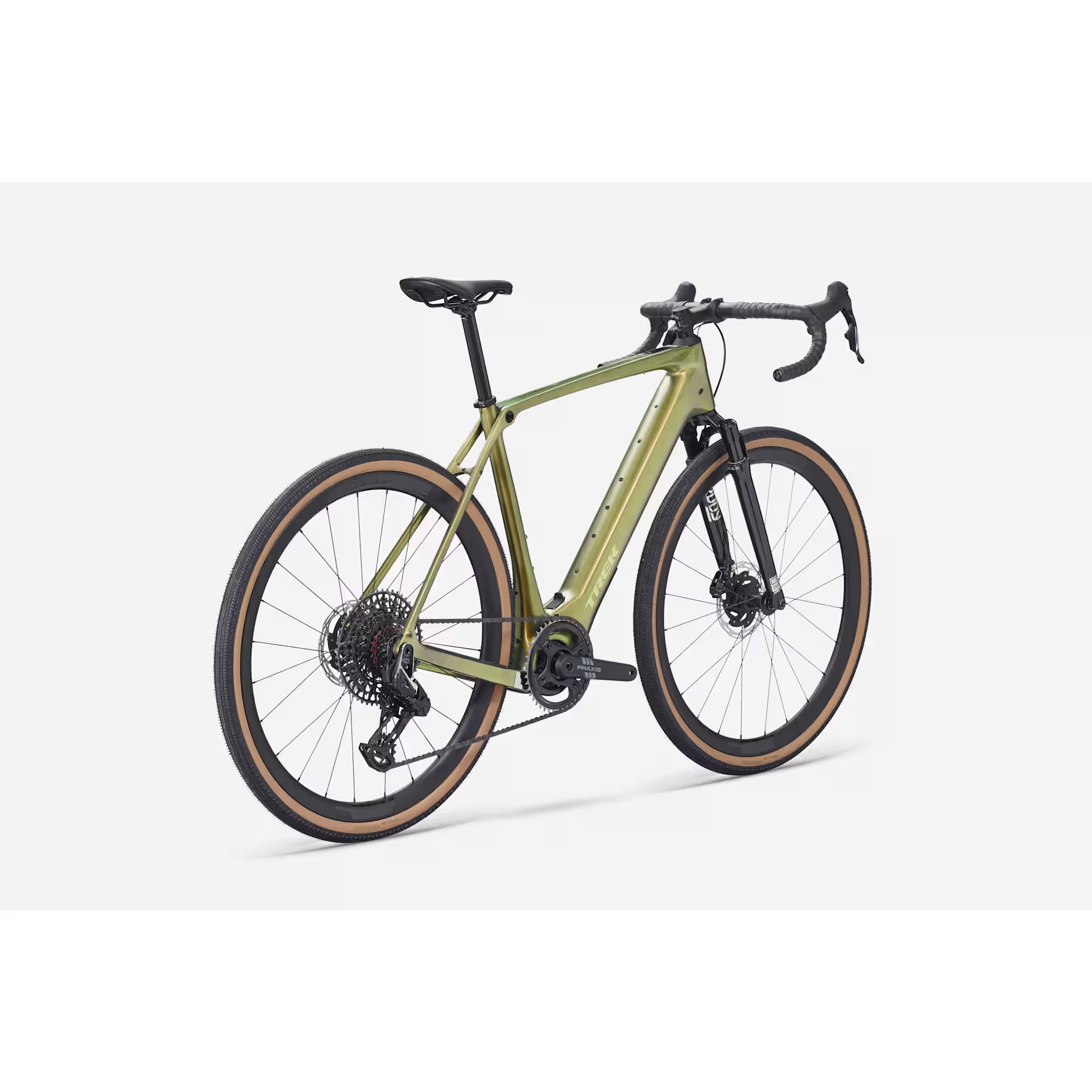

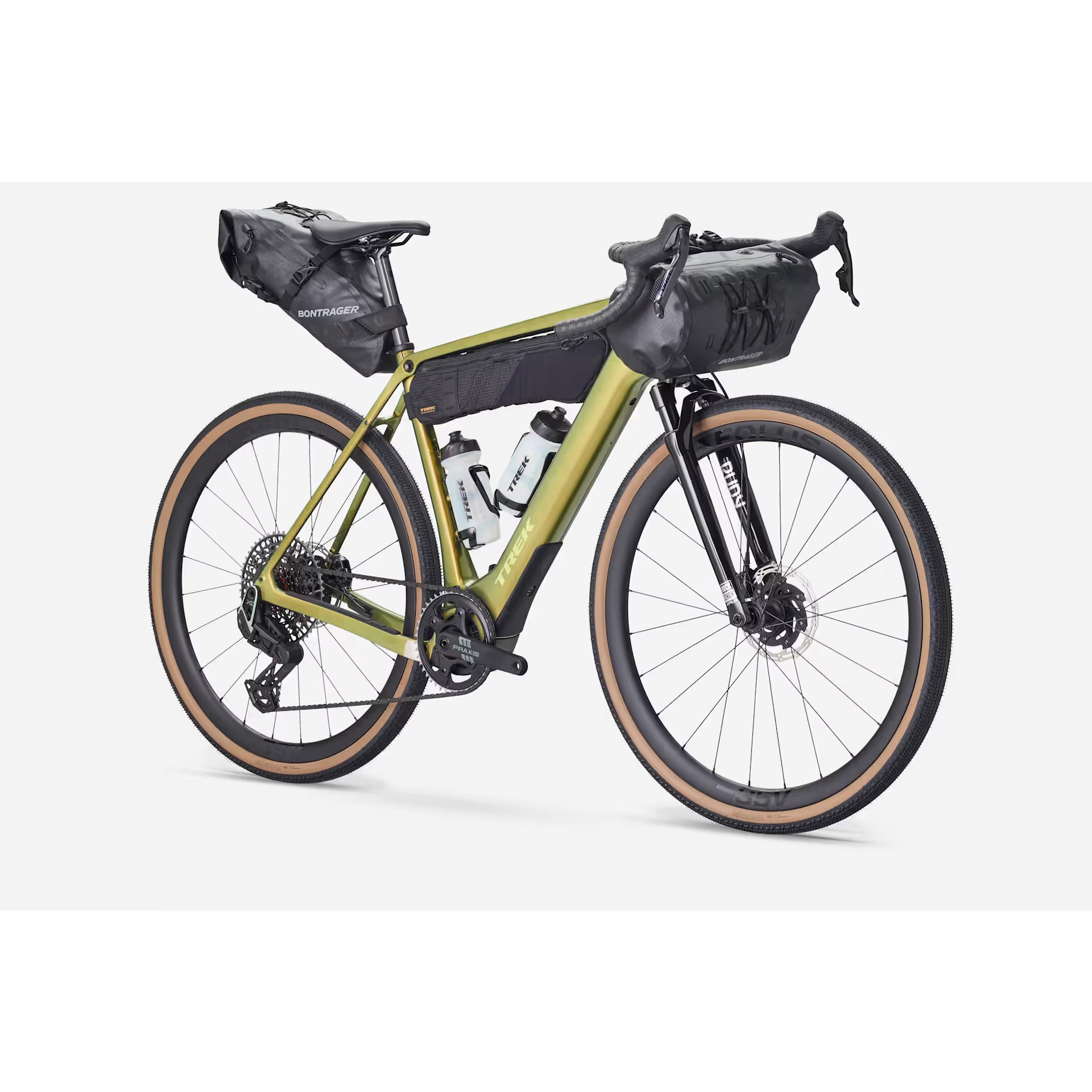

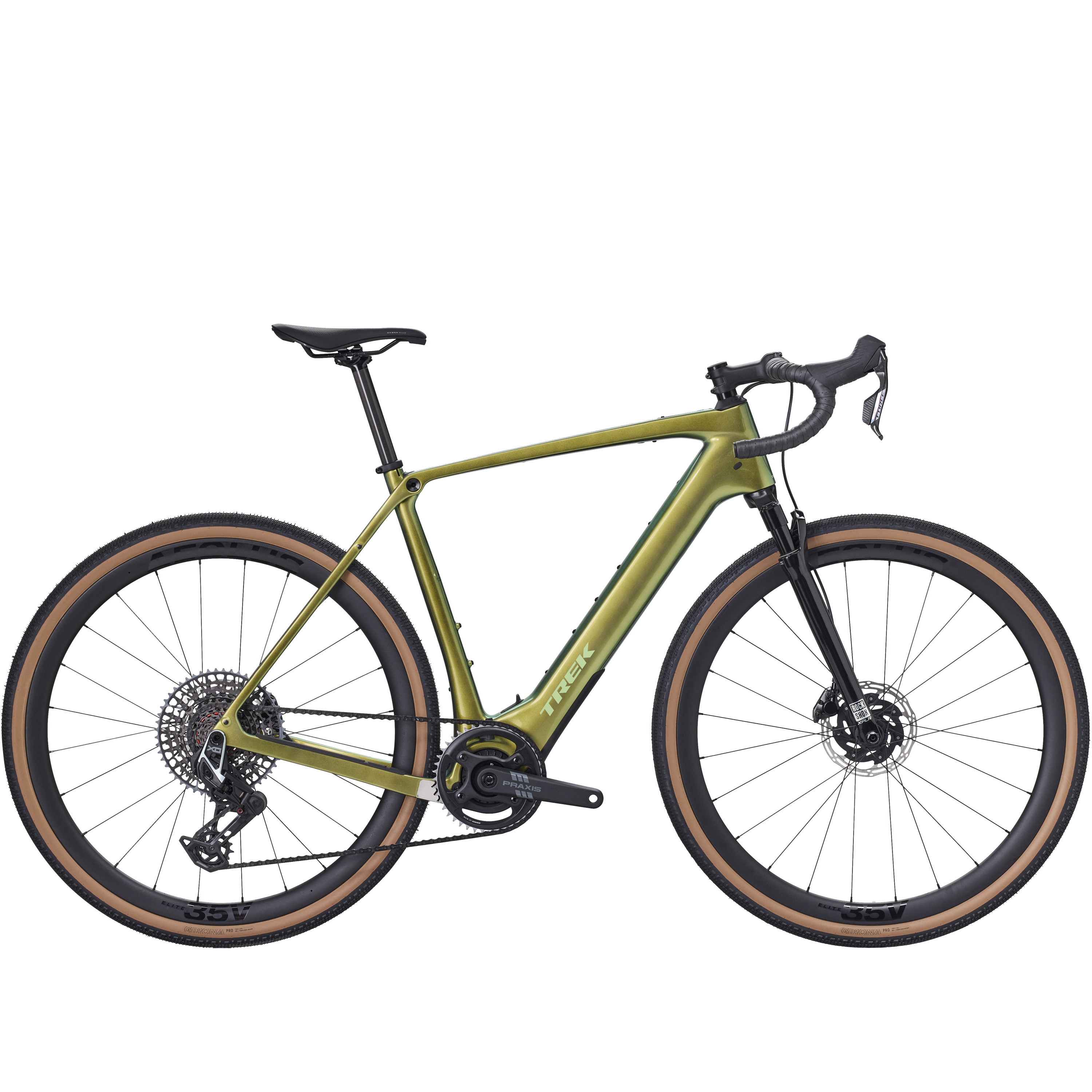

Trek Checkpoint+ SL7 AXS 2026
The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most ambitious adventures. The OCLV carbon frame keeps things light, the TQ HPR60 motor provides smooth assistance, while the 40 mm RockShox Rudy XPLR suspension fork delivers confident, relaxed control on the roughest tracks. SRAM’s 12-speed Force AXS drivetrain ensures smooth wireless shifting, while the OCLV carbon Bontrager Aeolus Elite 35V wheels and carbon seatpost damp vibrations while keeping the bike light.
Trek Checkpoint+ SL7 AXS 2026Medium - Large / Green
Sale price9,999.99$
Specifications
SpecificationsFrame
OCLV Carbon 500 Series, IsoSpeed, internal cable routing, Flat-Mount, fender mounts, 142x12 mm thru axle

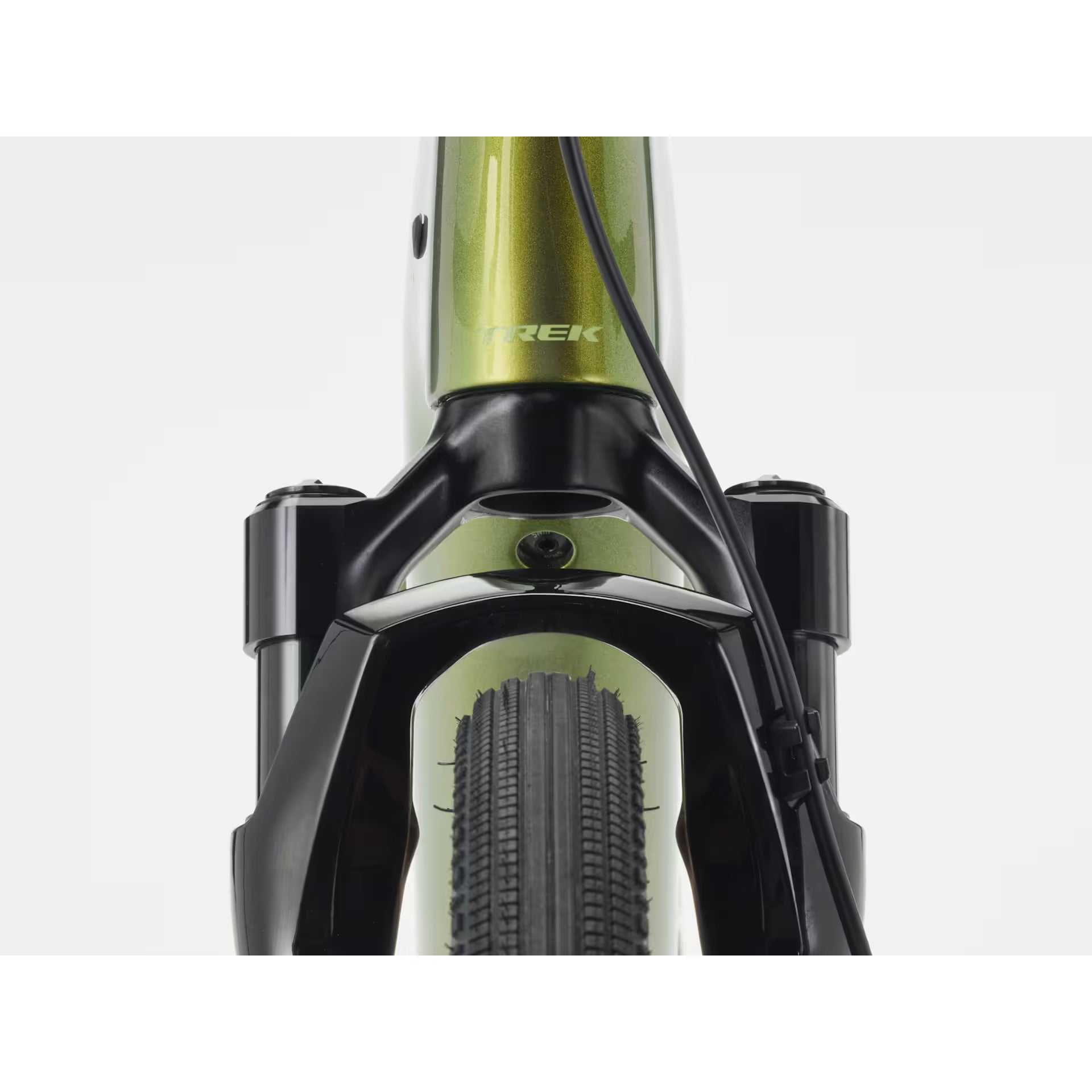

Fork
RockShox Rudy XPLR, Solo Air, tapered steerer, 45 mm offset, 40 mm travel, 12x100 mm axle
Weight
14.05 kg / 30.98 lbs (size ML, tubeless)
Maximum weight
125 kg (bike, rider and luggage)

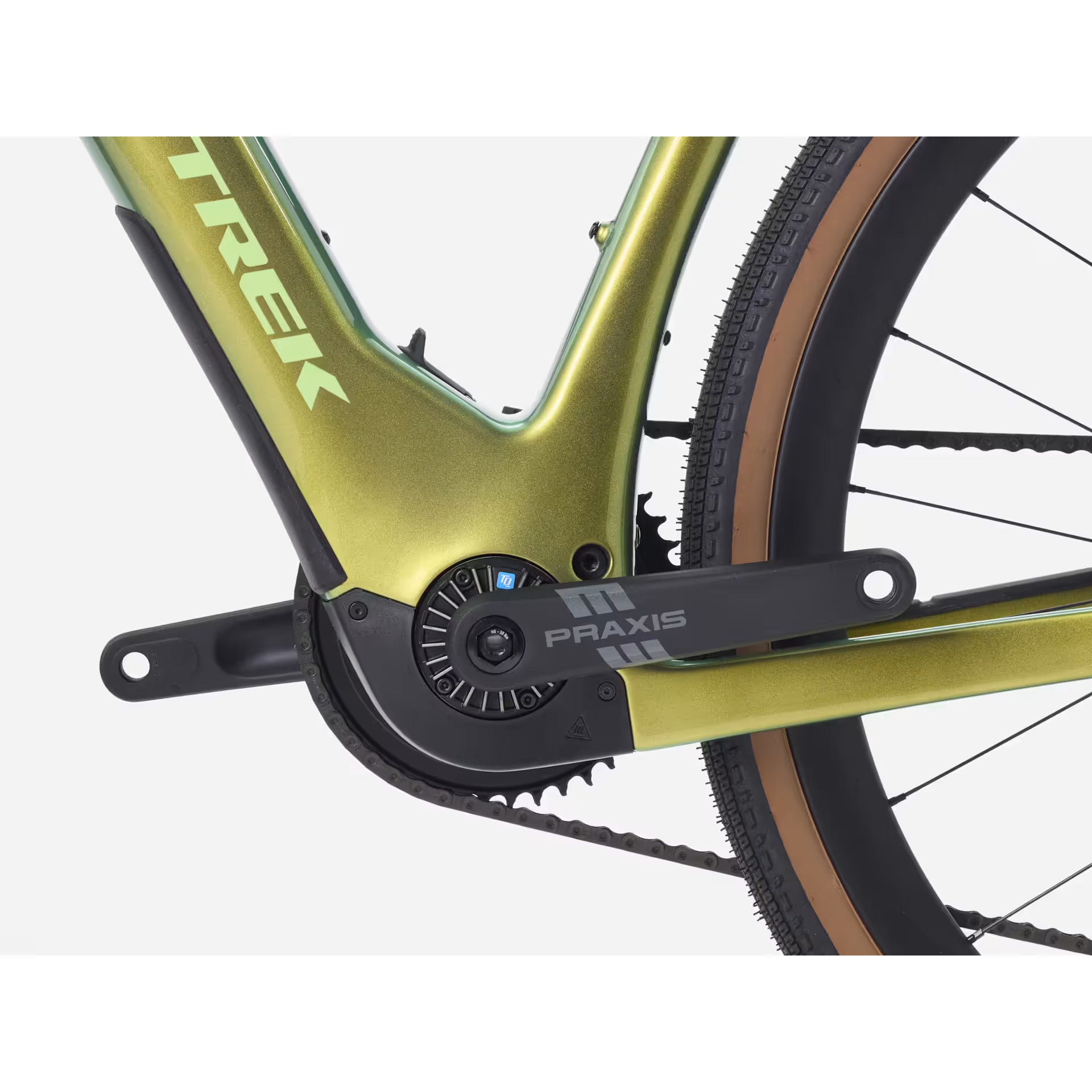

Motor
TQ-HPR60, 60 Nm, 250 W continuous, 350 W peak
Battery
TQ 360 Wh
Charger
TQ 4A
Controller
TQ color LED display with Bluetooth and ANT+
Category
Class 1 electric bike
Shifter
SRAM Force AXS E1, wireless
Rear derailleur
SRAM X0 Eagle AXS T-Type, 12-speed
Crankset
Praxis aluminum, 165 to 172.5 mm depending on size
Cassette
SRAM XS-1295 Eagle T-Type, 10-52T, 12-speed
Chain
SRAM X0 Eagle T-Type, 12-speed
Max chainring
44T (single)
Wheels
Bontrager Aeolus Elite 35V carbon, tubeless ready, 35 mm depth
Front hub
12x100 mm thru axle
Rear hub
SRAM XD-R driver body, 12x142 mm axle
Tires
Bontrager Girona RSL GR 700x42 mm, tubeless ready, 220 TPI
Max tire width
50 mm without fenders / 42 mm with fenders
Saddle
Verse Short Elite, magnesium rails, 145 mm
Seatpost
Bontrager carbon, Ø27.2 mm, 8 mm offset

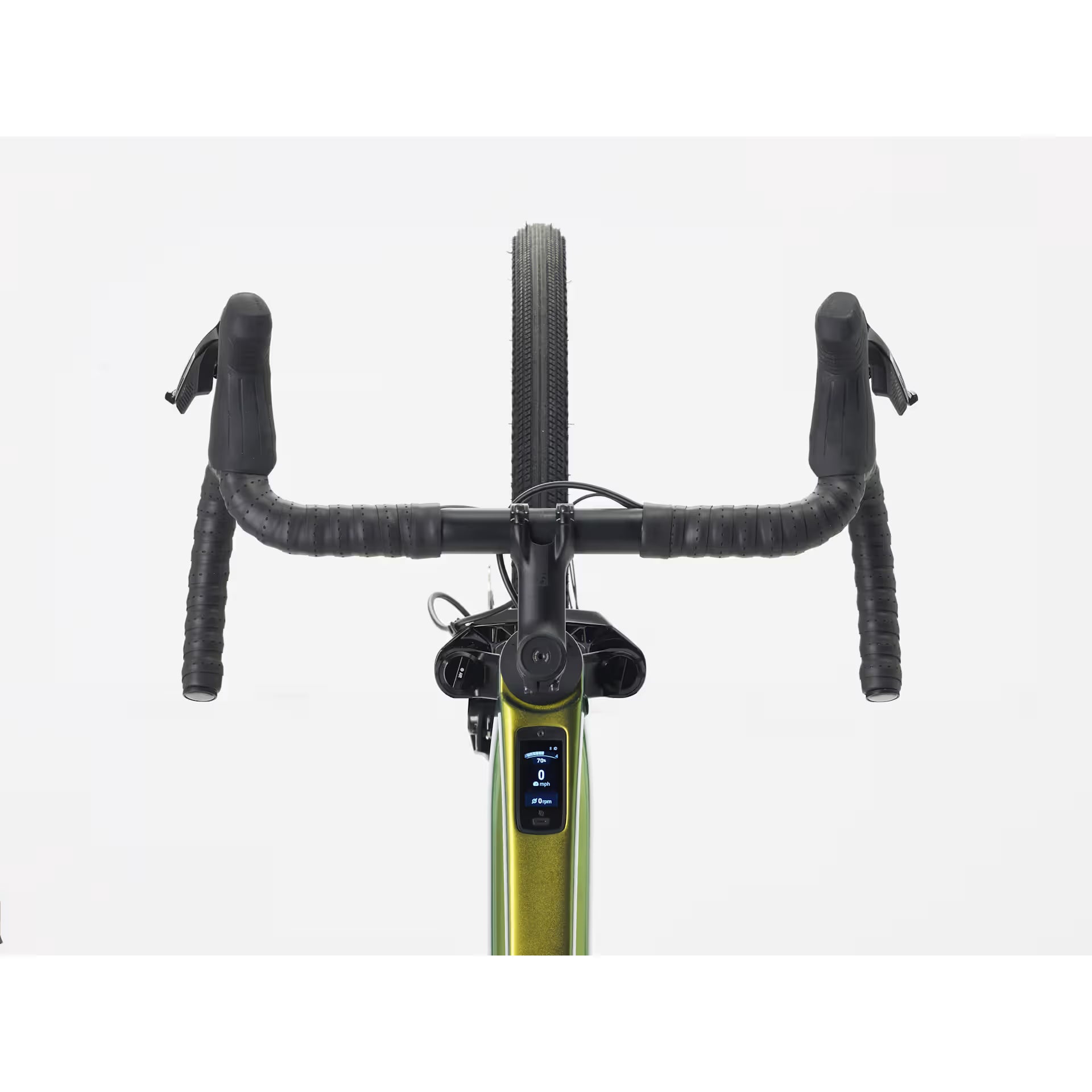

Handlebar
Bontrager Pro Gravel, width 40 to 46 cm depending on size
Stem
Bontrager Pro, 31.8 mm, 7° rise, length 80 to 100 mm depending on size
Bar tape
Bontrager Supertack Perf
Brakes
SRAM hydraulic
Rotors
SRAM CenterLine X, Centerlock, 160 mm
Max rotor size
180 mm front and rear
