Description
The Checkpoint+ SL 5 is an electric gravel bike built for long distances. You get a TQ HPR60 motor that delivers smooth, quiet acceleration and a 360 Wh battery that supports your longest rides. It’s ready to roll with an OCLV carbon frame, durable alloy wheels, a 1x 12-speed Shimano GRX drivetrain and endurance geometry that keeps you comfortable on big days in the saddle.
Specifications
| Parts | Parts |
|---|---|
| Frame | OCLV Carbon Series 500, TQ drive system, tapered head tube, IsoSpeed, internal cable routing, Flat-Mount disc, fender mounts, 142x12 mm beveled thru-axle |

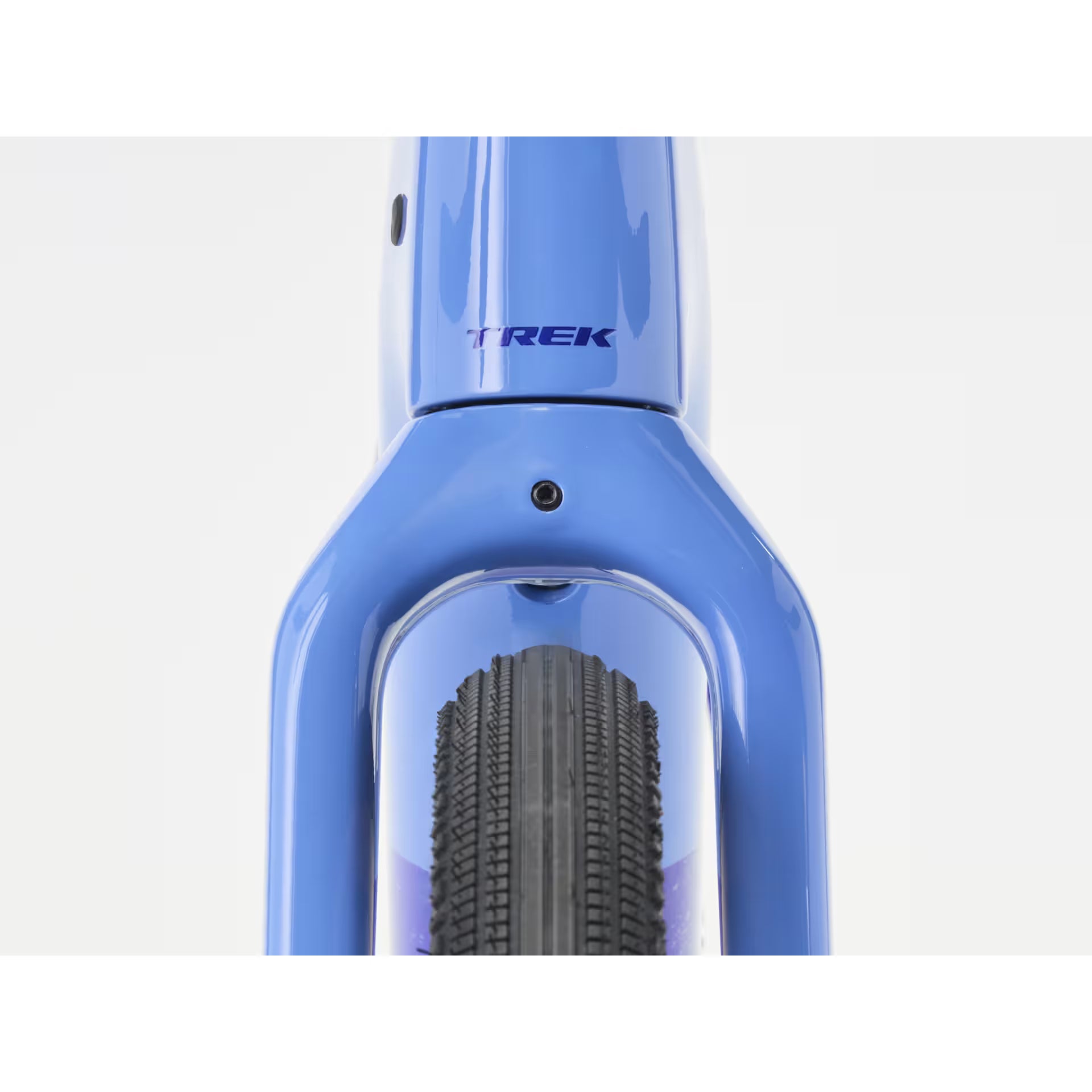

| Fork | Checkpoint Carbon |
| Computer | TQ color LED display with Bluetooth and ANT+ connectivity |
| Battery | TQ 360Wh |
| Motor | TQ-HPR60, 60 Nm, 300 watts maximum continuous power, 350 watts peak power |
| Tire | Bontrager Girona RSL GR, 700x42 |
| Front wheel | Bontrager Paradigm Comp 25 | TA 12x100mm |
| Rear wheel | Bontrager Paradigm Comp 25 | TA 12x142mm | |
| Front brake | Shimano GRX RX820 |
| Rear brake | Shimano GRX RX820 |
| Rear derailleur | Shimano GRX RX820, 12-speed |
| Shifter | Shimano GRX RX820, 12-speed |

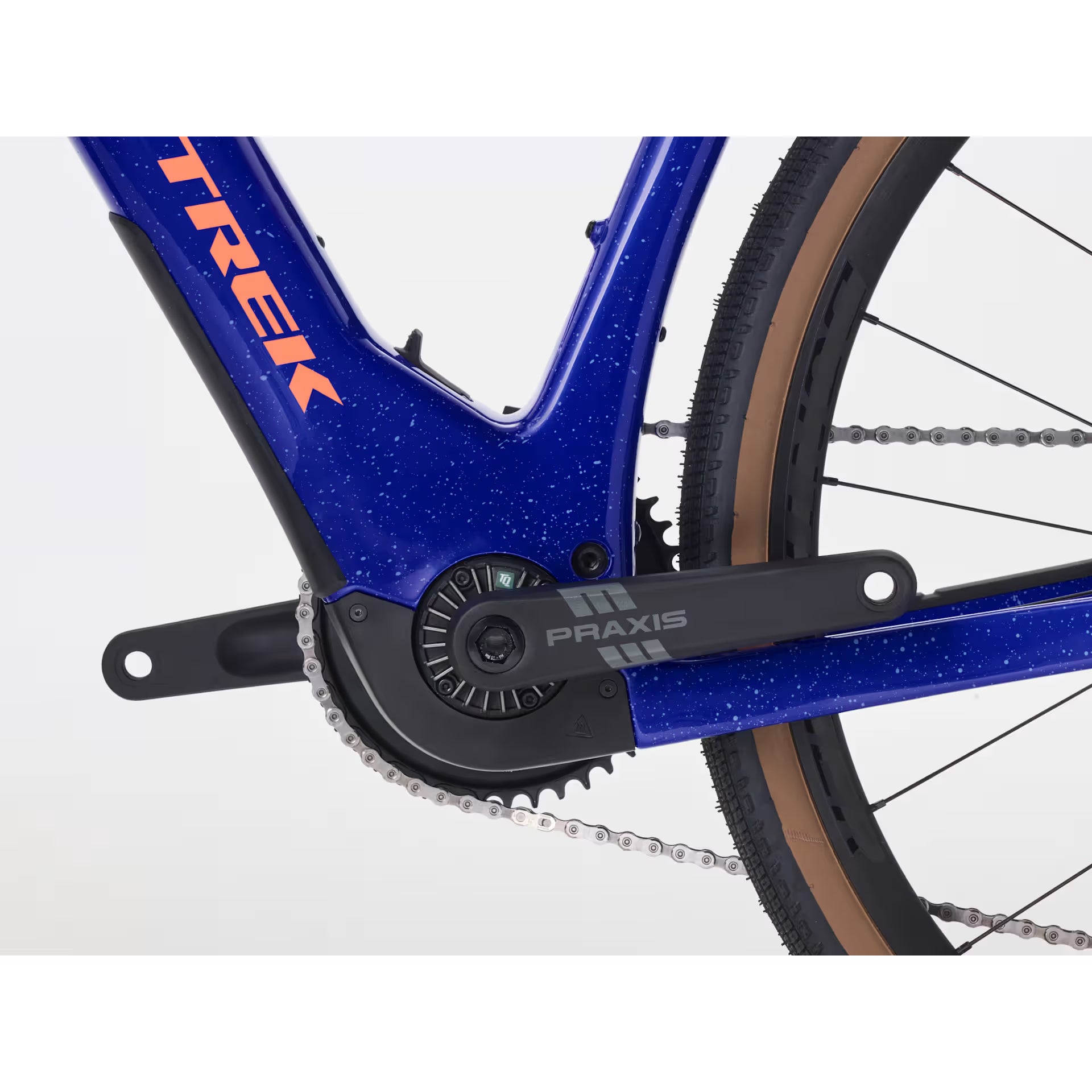

| Crankset | Praxis alloy |
| Cassette | Shimano XT - 10-51 |
| Chain | Shimano XT |
| Handlebar | Bontrager Elite |
| Stem | Bontrager Elite |
| Grips | Bontrager Supertack Perf bar tape |
| Seatpost | Bontrager Carbon, 27.2 mm |
Guide des tailles
| Tailles | Taille du cycliste(pi) | Taille du cycliste(cm) |
|---|---|---|
| Très Petit | 4'8"-5'2" | 143 - 158 cm |
| Petit | 5'2"-5'5" | 158 - 164 cm |
| Moyen | 5'5"-5'10" | 164 - 177 cm |
| Moyen-Grand | 5’10"-6'2" | 177 - 188 cm |
| Grand | 6’2"-6'4" | 188 - 194 cm |
| Très Grand | 6’4"-6'8" | 194 - 204 cm |
Geometry
| Size | Extra Small | Small | Medium | Medium - Large | Large | Extra Large |
|---|---|---|---|---|---|---|
| A- ST (mm) | 445 | 480 | 505 | 530 | 550 | 575 |
| B - SA (Deg.) | 74 | 74 | 73 | 73 | 73 | 73 |
| C - HA (Deg.) | 71 | 71.4 | 71.6 | 72 | 72.1 | 72.4 |
| D - TT(mm) | 536 | 547 | 566 | 578 | 589 | 601 |
| E - Reach (mm) | 380 | 386 | 391 | 397 | 402 | 408 |
| F- CS (mm) | 440 | 440 | 440 | 440 | 440 | 440 |
| G - WB (mm) | 1023 | 1032 | 1044 | 1052 | 1063 | 1072 |
| H - BBH (mm) | N/A | N/A | N/A | N/A | N/A | N/A |
| I - SOH (mm) | 746 | 772 | 792 | 813 | 837 | 861 |
| J - Stack (mm) | 535 | 556 | 579 | 601 | 620 | 640 |
| K - HT (mm) | 86 | 106 | 130 | 151 | 171 | 191 |
Frequently Asked Questions
What are the shipping fees for a bike?
Bikes can be purchased online without any problem. A flat fee of $50 is added for shipping the bike to your home.
Can I order online and pick up in store myself?
Yes, you can select the “In-store pickup” option in your shopping cart. This way, no shipping fees will be charged.
The bike isn’t available online, is it possible to place an order?
It is sometimes possible to place an order or find you another alternative. You can contact us here or visit us in store in Quebec City, at 2661 Boulevard du Versant Nord.
