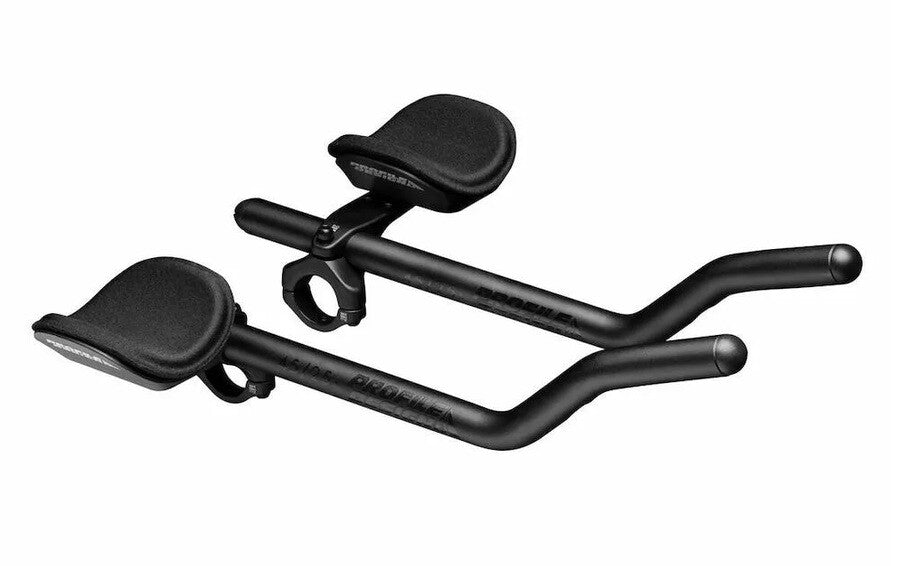

SONIC ERGO 4525A

SPECS

- Bracket: Sonic
- Armrest: Ergo / 10mm Pads
- Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
- Armrest Offset: -70mm to -2.5mm in 7.5mm steps
- Armrest Stack: The minimum is 60mm and the bracket is compatible with our existing risers which add up to 70mm of stack in 5mm increments.
- Color: Matte Black
- Weight: 559g

Torque settings (all bolts are M6)

- Bar Clamp: 6Nm
- Extension Clamp: 6Nm
- Armrest Bolts: 4.7Nm

Weight

- Bracket: 234g
- Armrest: 130g
- Extensions: 195g
- Total: 559g
