Description

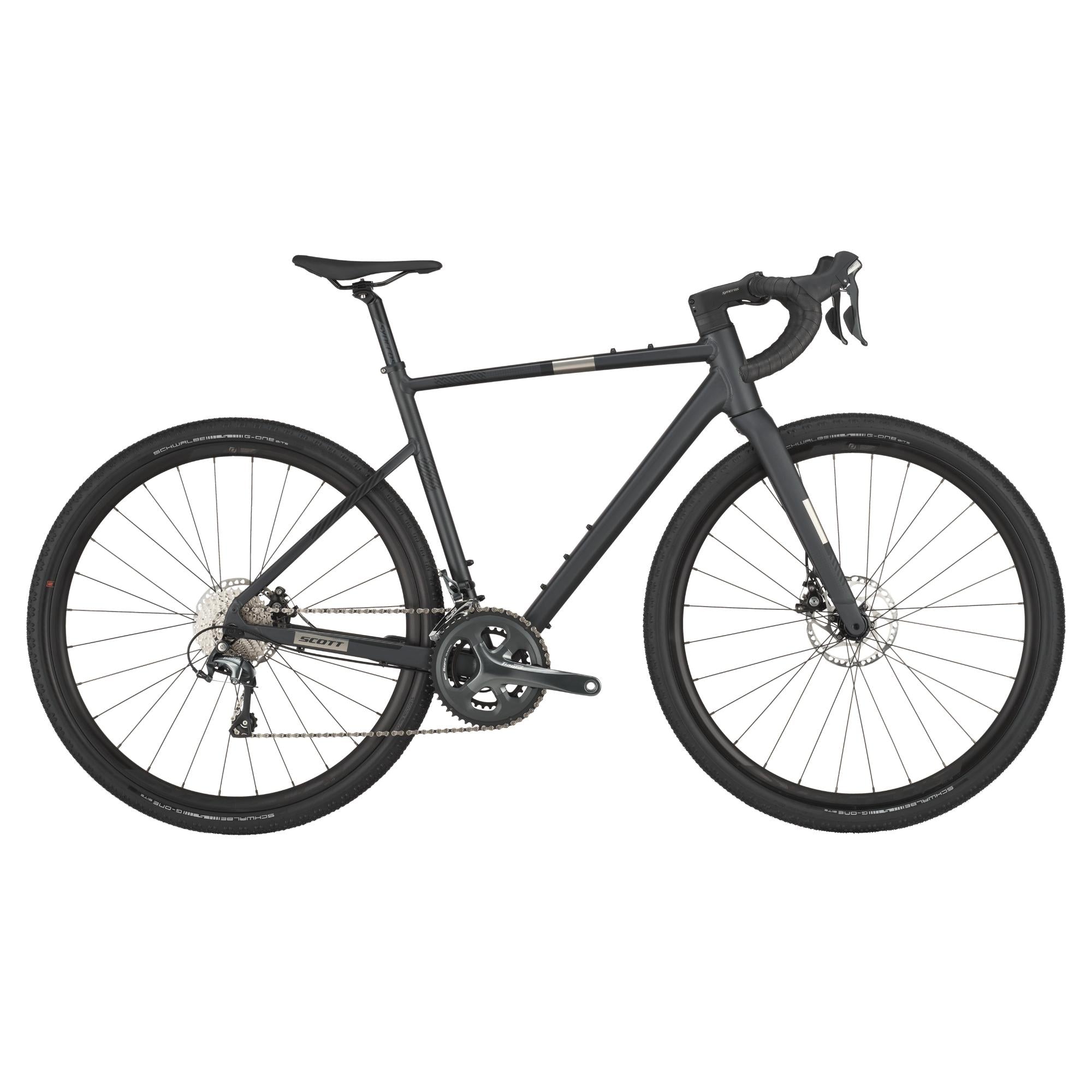

The SCOTT Speedster Gravel 40 is your all-risk insurance policy when you head off the beaten path. Equipped with a Shimano drivetrain, robust Schwalbe G-One tires, and Syncros components, the Speedster Gravel 40 is ready for new adventures.
Specifications
| Frame | Speedster Gravel Disc / D.Butted 6061 Alloy |
| Fork | Speedster Carbon Disc | 1 1/8"-1 1/4" carbon steerer |
| Tires | Schwalbe G-ONE Allround | 700 x 35C |
| Brakes | Shimano BR-RS305 black mechanical disc |
| Rear derailleur | Shimano Tiagra RD-4700-GS | 20 speed |
| Front derailleur | Shimano Tiagra FD-4700 |
| Crankset | Shimano Tiagra FC-4700 | Hyperdrive 50x34 T |
| Cassette | Shimano CS-HG500 | 10 speed 11-34 T |
| Chain | KMC X10 |
| Stem | JD ST123A alloy | 1 1/8" / four-bolt 31.8 mm |
| Seatpost | Syncros RR2.5 27.2/350 mm |
| Headset | Integrated steel cup |
Size Guide
| Sizes | Rider height (ft) | Rider height (cm) |
|---|---|---|
| Extra Small | 4'11"–5'0" | 125 - 158cm |
| Small | 5'2"–5'6" | 160 - 170cm |
| Medium | 5'5"–5'9" | 169 - 179cm |
| Large | 5'8"–6'1" | 178 - 188cm |
| Extra Large | 6'1"–6'4" | 187 - 198cm |
Geometry
| Size | XX-Small | X-Small | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|---|---|
| A- ST (mm) | 455 | 475 | 505 | 525 | 545 | 565 | 580 |
| B - SA (Deg.) | 75 | 75 | 74.5 | 74 | 73.5 | 73.1 | 73 |
| C - HA (Deg.) | 70.5 | 71 | 72 | 72.5 | 73 | 73.3 | 73.3 |
| D - TT(mm) | 515 | 525 | 540 | 555 | 570 | 585 | 600 |
| E - Reach (mm) | 376.3 | 383.2 | 387 | 390.9 | 394.3 | 613.6 | 632.7 |
| F- CS (mm) | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| G - WB (mm) | 996.7 | 1003 | 1005 | 1010.6 | 1015.4 | 1022.8 | 1036.5 |
| H - BBH (mm) | 275.3 | 275.3 | 275.3 | 275.3 | 275.3 | 275.3 | 275.3 |
| I - SOH (mm) | 732 | 747 | 775 | 790 | 812 | 835 | 848 |
| J - Stack (mm) | 517.8 | 529.1 | 551.6 | 572.4 | 593.3 | 613.6 | 632.7 |
| K - HT (mm) | 95 | 105 | 125 | 145 | 165 | 185 | 205 |
Frequently Asked Questions
What are the shipping fees for a bike?
Bikes can be purchased online without any problem. A flat fee of $50 is added for shipping the bike to your home.
Can I order online and pick it up in store myself?
Yes, you can select the “In-store pickup” option in your shopping cart. This way, you will not be charged any shipping fees.
The bike isn’t available online, is it still possible to place an order?
It is sometimes possible to place an order or find another alternative for you. You can contact us here or visit us in store in Quebec City, at 2661 Boulevard du Versant Nord.
