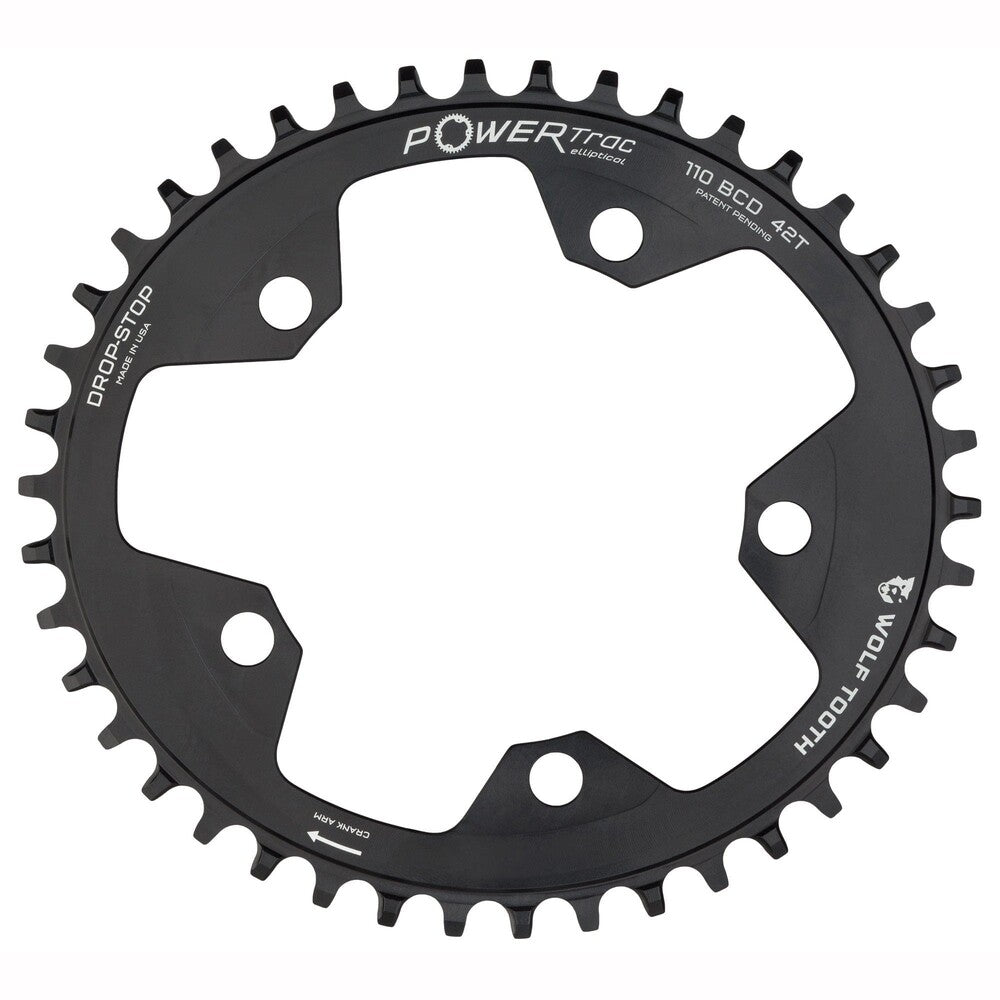

Oval 110 BCD Gravel / CX / Road Chainrings

These rings must be used with 110 BCD 5-bolt cranksets.

The crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 visible bolts and 1 hidden bolt behind the crank arm, as with SRAM.
Patented Wolf Tooth Drop-Stop wide/narrow tooth profile for ultimate chain retention and mud shedding

Chainline – varies – these rings can be mounted in either the big or small ring position on a double crankset. The most common setup is in the big ring position due to chainstay clearance. The ring’s centerline is about 2 mm from the mounting face, so they usually sit about 2 mm closer to the frame than the original big ring (depends on the original ring).

Can be mounted in either the big or small ring position on a double crankset, provided there is enough chainstay clearance in the small ring position. Stock 2x bolts will not work. You will need bolts such as our 6 mm bolts, which are optimized for single-ring mounting.

For more details and compatibility information for this product, please visit https://www.wolftoothcomponents.com/
