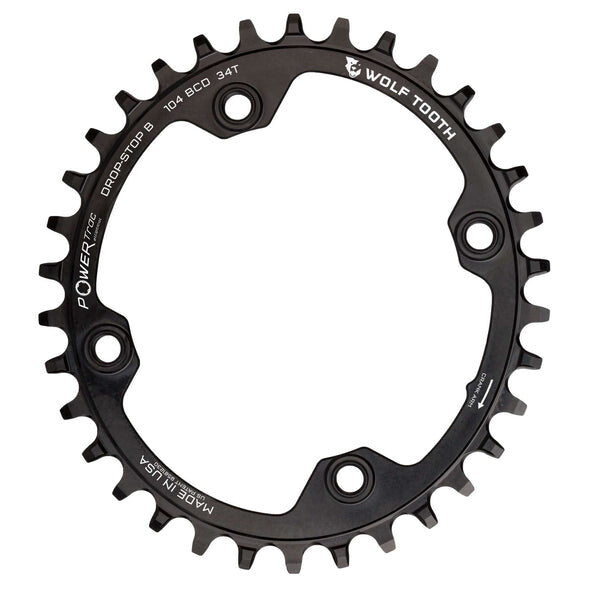

Oval 104 BCD Chainrings

133.95$

Color: Black

Black

Size: 32T

32T 34T

Variation: Drop-Stop B

Drop-Stop B Drop-Stop ST

Chainline (approximate, depending on gearbox and crankset centering) – 48 mm on 3x cranksets and 49 mm on 2x cranksets
Compatibility

These rings fit any 104 BCD crankset. Designed to meet the demands of e-bike use.

Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for ultimate chain retention and mud shedding
For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)

If you are using a 9-speed drivetrain, use a 10-speed chain (it shifts and runs well on a 9-speed drivetrain and fits the ring for better chain retention).

Quarq power meter compatible in 34t and 36t sizes. Shimming is required to mount 32t on some older Quarq power meters. No modification is required for the DUB Quarq power meter.

Threaded to use M8 chainring bolts (no nut required)
10% ovality and 112° timing after TDC (top dead center)
The maximum diameter is that of a chainring 2 teeth larger than the size you order (so make sure there is enough chainstay clearance.)

For more details and compatibility information for this product please visit https://www.wolftoothcomponents.com/
