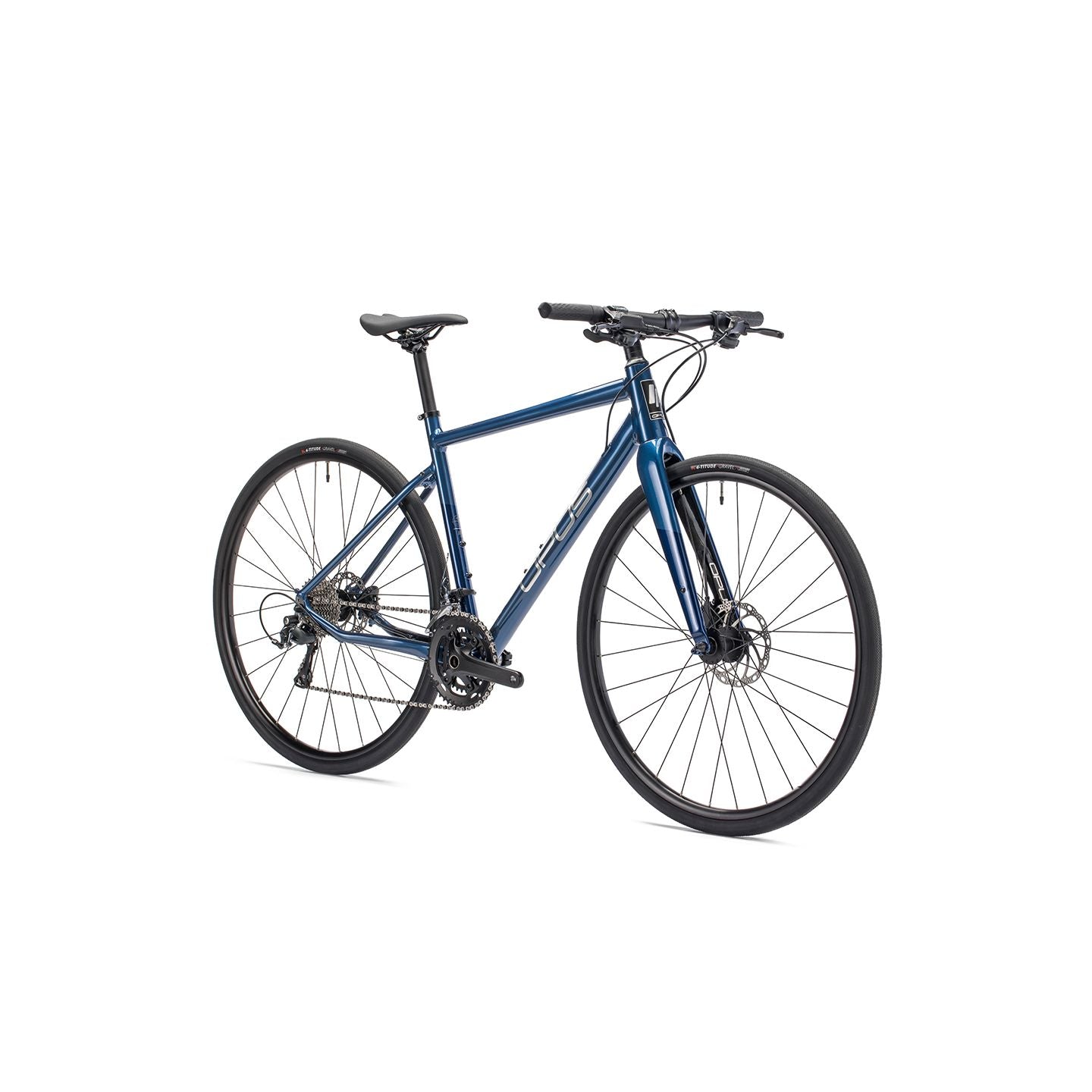

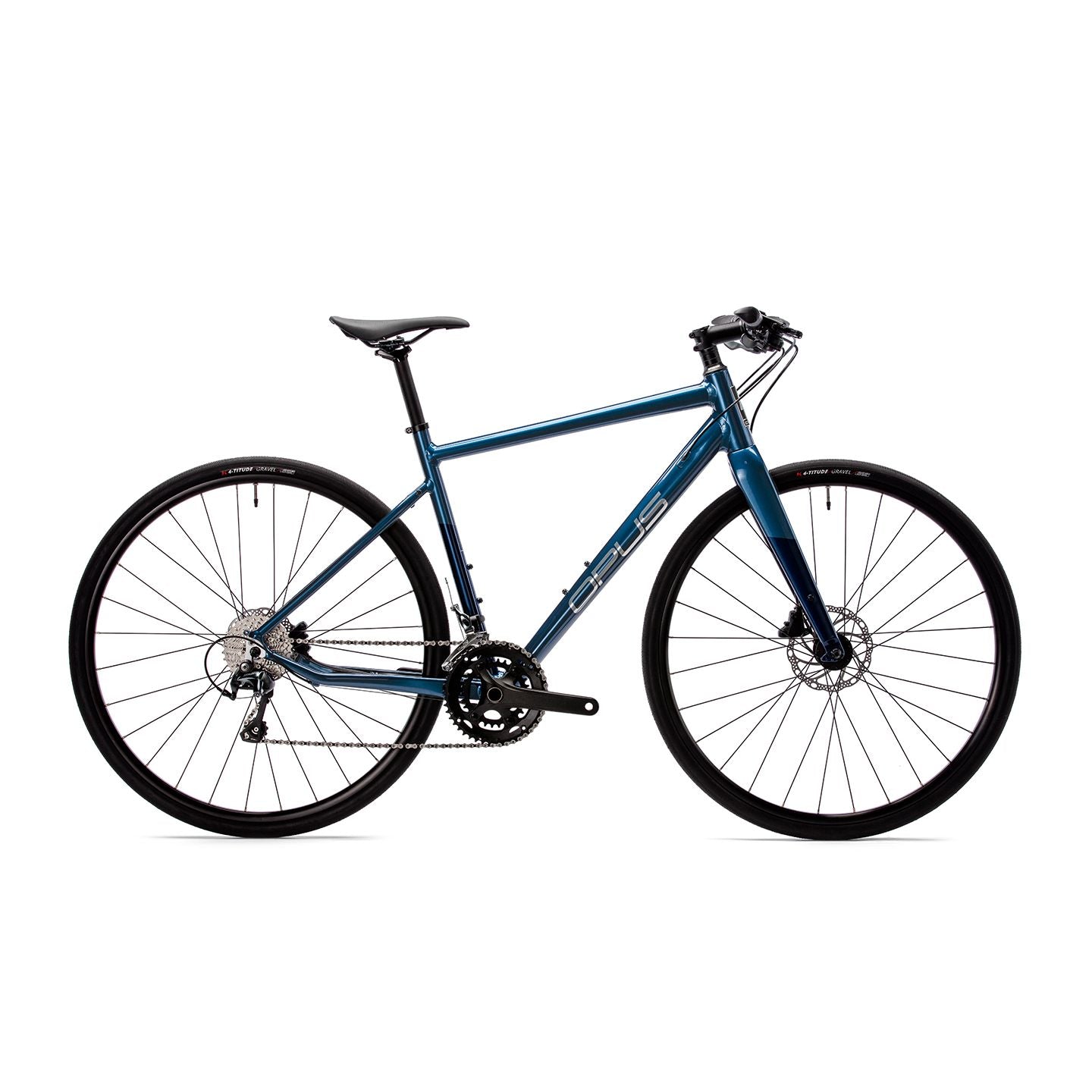

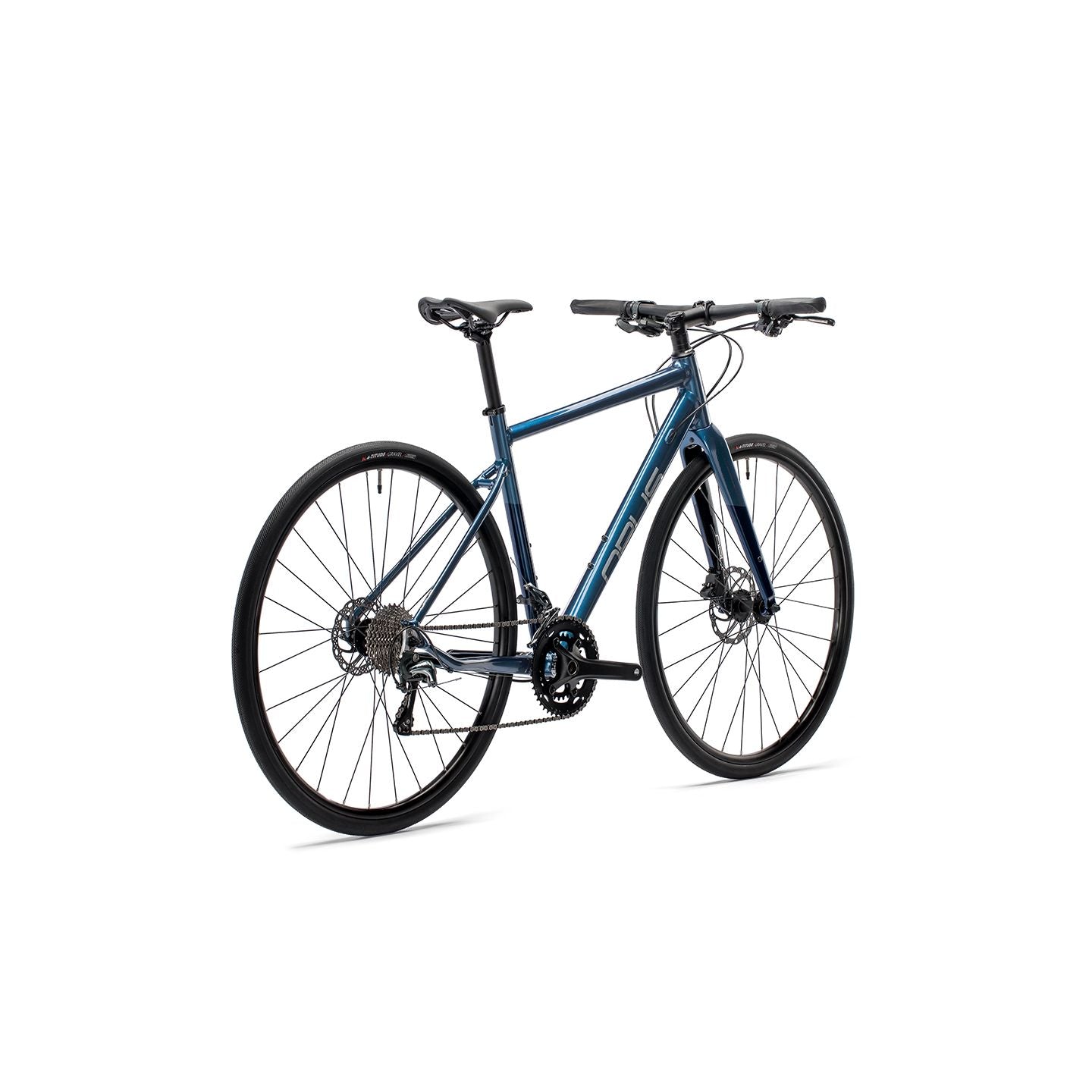

FORTITUDE FB TIAGRA

Features

- Full Shimano Tiagra 10-speed groupset
- Dual-piston mechanical disc brakes
- Full carbon fork
- 32 mm tires with clearance for 35 mm
- Ergonomic handlebar

Specifications

Frame Aluminum
Fork Tapered Carbon 1-1/4 to 1-1/8 in
Sizes XS-S-M-L
Shifters Shimano Tiagra 4700 2 x 10
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700
Brakes Tektro HD-R280 - hydraulic discs
Brake Levers Shimano Tiagra 4700
Crankset Prowheel RPL-521TT
Chainrings 46-30
Bottom Bracket BB68 cartridge
Cassette Shimano HG500 -10 11-32
Chain KMC X10
Headset TH Integrated sealed
Handlebar Alloy 31.8 mm
Stem Promax
Grips/Bar Tape Velo ERGO dual density
Saddle Opus Endurance
Seatpost Promax Alloy 27.2 x 300
Wheels/Rims Weinmann U28
Hubs Alex 28-hole
Tires Kenda K1225 4Titude
Pedals N/A
Other Compatible with fenders and racks

Geometry

Size XS S M L
Size (cm)
Rider height (± 5 cm) 160 168 175 183
Rider height (± 2") 5’3” 5’6″ 5’9” 6’0”
Seat tube 420 460 500 540
Top tube 530 550 570 590
Head tube 100 125 145 165
Head angle 71 71.5 72 72
Seat tube angle 74.5 74 73.5 73
Chainstays 430 435 435 435
BB drop 80 78 76 74
Stack 539 562 581 598
Reach 380 389 398 407
Wheelbase 683 716 749 782
Handlebar width 580 600 600 620
Stem length 80 80 90 90
Crank length 165 170 170 172.5
