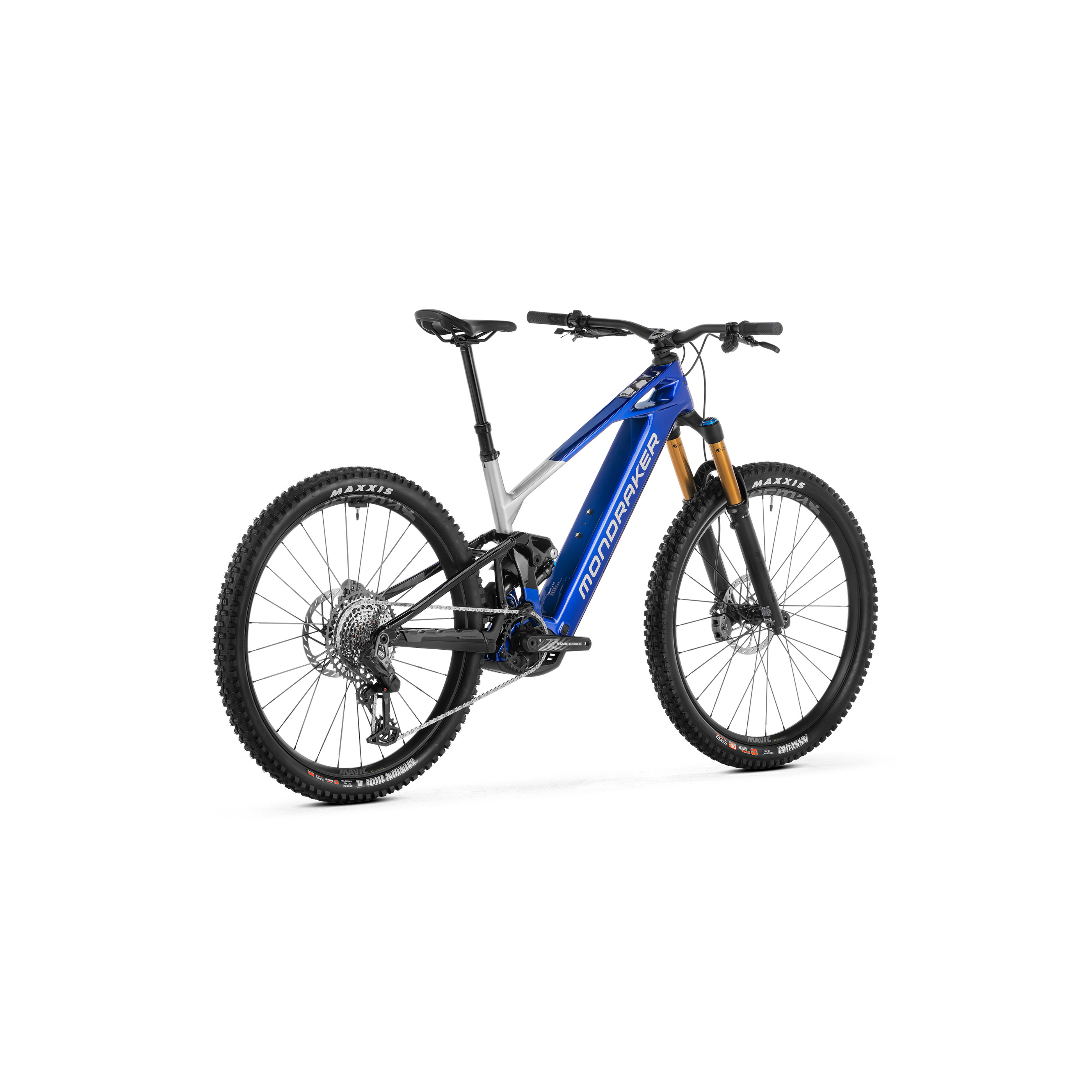

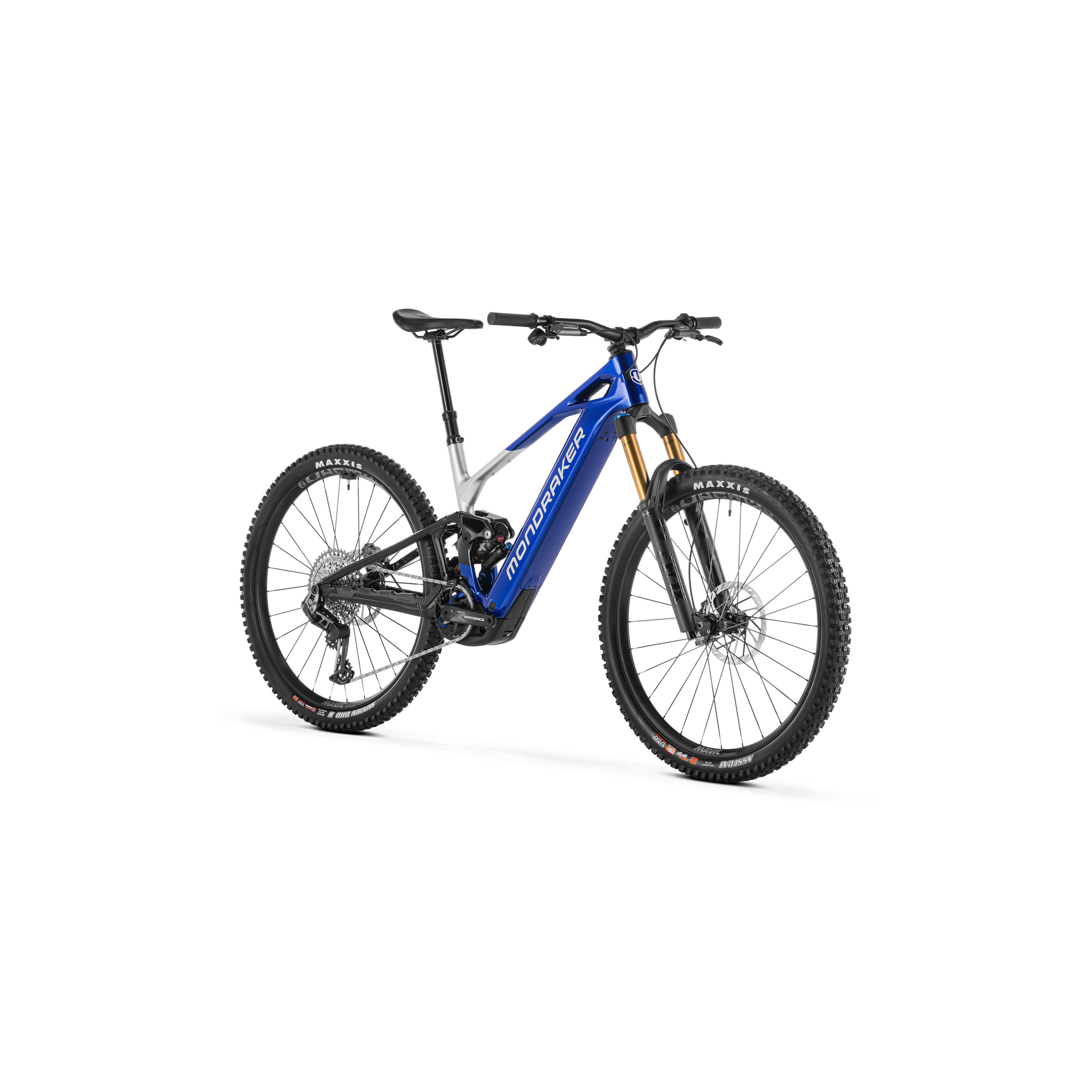

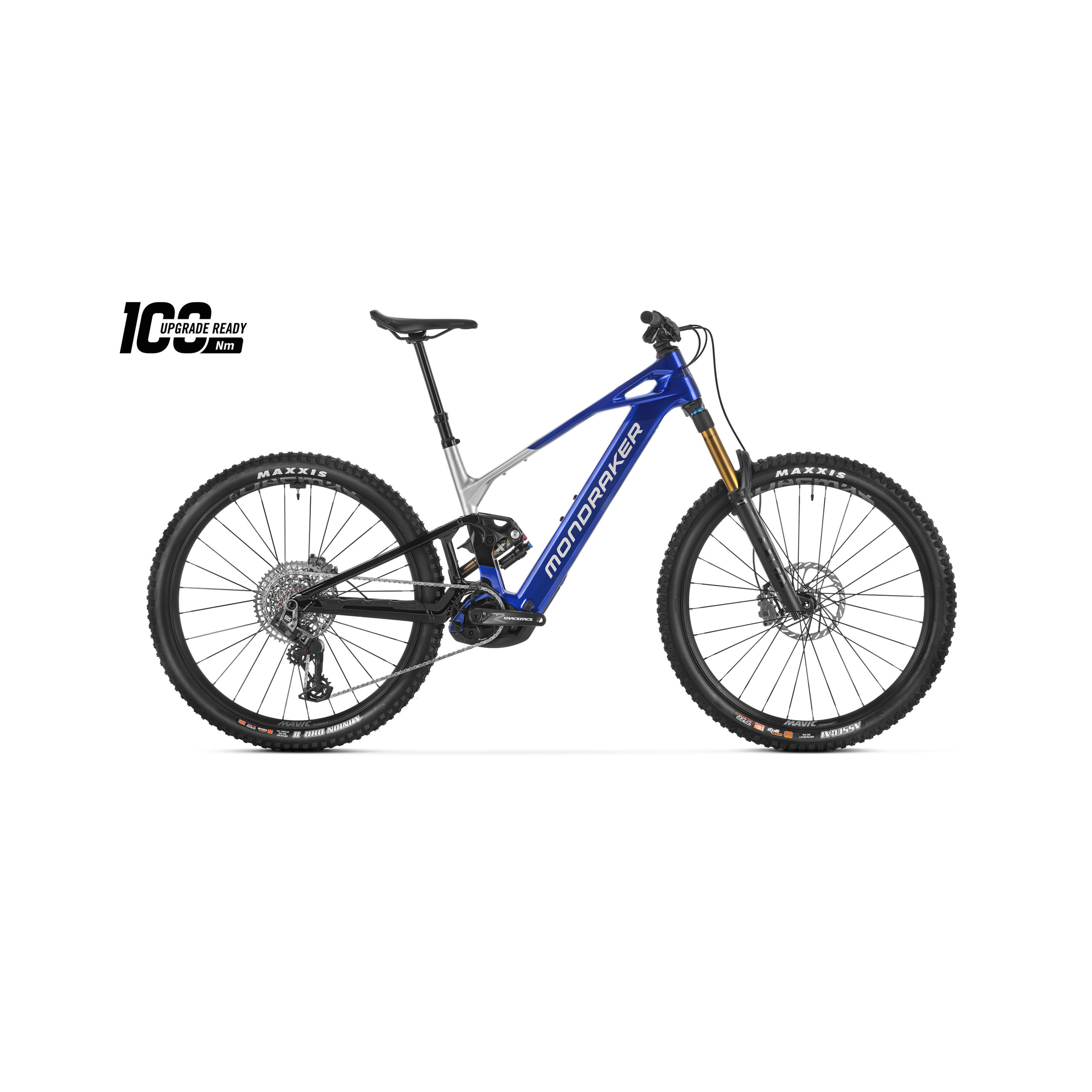

Mondraker Crafty Carbon RR 2026
The rapid evolution of mountain biking in recent years has not gone unnoticed at Mondraker. This bike category, which has seen uninterrupted growth through different types of riders and disciplines, has meant a return to the roots for many. Roots based on fun, the ability to go further, and the pleasure of pedaling on more challenging terrain. All this with a very strong off-road character, which fits perfectly with the philosophy Mondraker applies to all its bikes.
Mondraker Crafty Carbon RR 2026
Specifications
SpecificationsFrame
Crafty Stealth Air, full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima EVOL 185x55mm, 2-position compression (Open/Firm), rebound, air preload, Trunnion top mount 30x8mm
Suspension settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset, high & low-speed compression & rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8" to 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise 25mm, width 800mm, backsweep 8º, upsweep 5º, 31.8mm (L/XL rise 38mm)
Grips
Onoff Desert Pro, CNC lock-on, 135mm (L/XL thicker)
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S: 140-115mm, M: 160-135mm, ML: 180-155mm, L: 210-185mm, XL: 210-185mm
Saddle
Ergon SM-10
Brakes
Sram Maven Bronze, 18 & 19.5mm, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake levers
Sram Maven Bronze, SwingLink & lever pivot bushings, tool-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Hubs
Mavic Boost Front 15x110mm / Rear 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Tires
Front: Maxxis Assegai 29x2.5 WT, 3C Maxx Grip, EXO+ / Rear: Maxxis Minion DHR II 29x2.5 WT, 3C MaxxTerra, DD protection
Cranks
Race Face Aeffect-R e-bike, 160mm
Chainring
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur
Sram GX Eagle AXS T-Type, 12s
Shifters
Sram Eagle AXS Pod MMX, 12s
Cassette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
53.8 lbs
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
