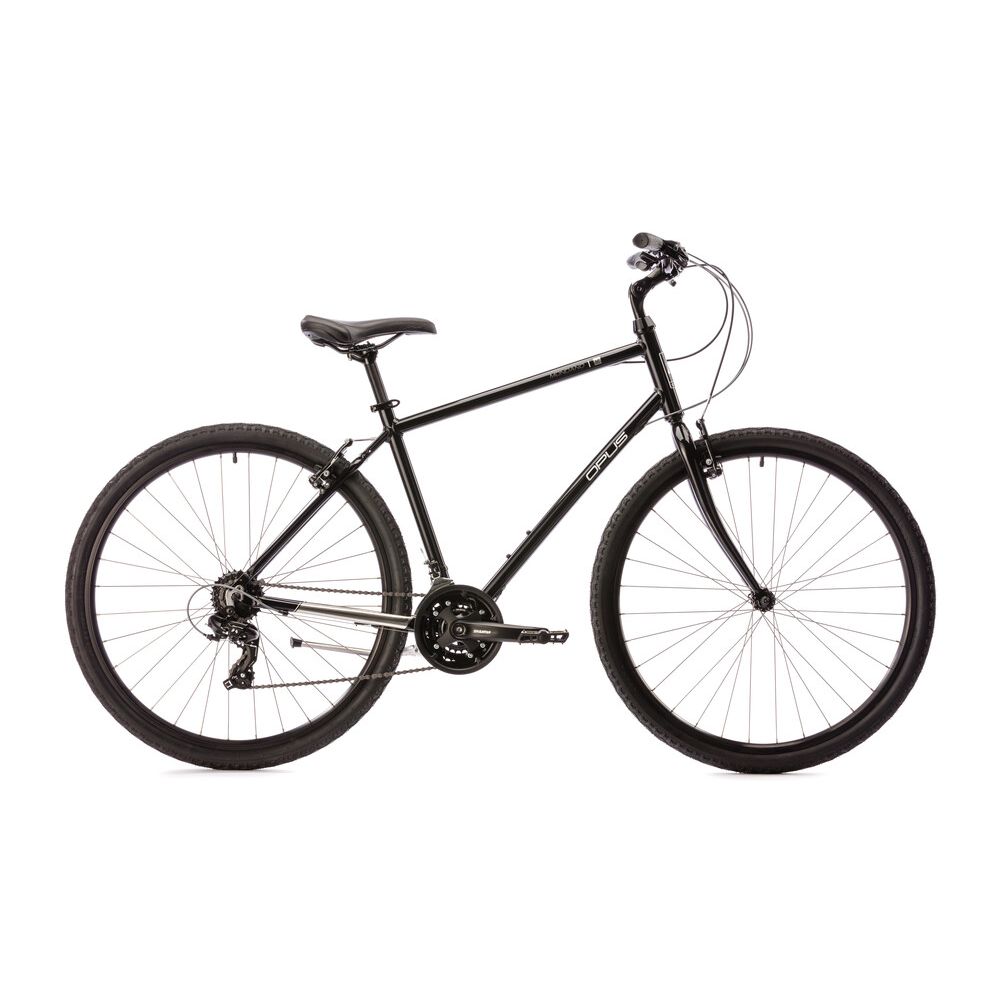

MONDANO

AWAKEN YOUR SENSES AND BECOME FULLY AWARE OF YOUR SURROUNDINGS

Riders looking for a bike to cruise around on will fall in love with the Mondano. The upright riding position makes for easy, smooth pedaling. Since comfort is a priority, we equipped it with fast-rolling 700c wheels and wide 45 mm tires. Agile and easy to handle – even at rush hour – it has powerful braking and is a breeze to park. Easy to ride, light, durable, and very stylish, the Mondano has everything going for it.

Features

- Geometry offering an upright position and optimal comfort
- Classic-style frame
- Shimano 3x7 E-Z Fire Plus drivetrain
- Wide 45 mm tires for rough roads or unpaved paths
- Adjustable stem for a wide range of positions

Specifications

Frame Aluminum
Fork Steel 1 1/8 in
Sizes XS-S-M-L
Shifters Shimano ST-EF500 3 x 7
Front derailleur Shimano Tourney
Rear derailleur Shimano Tourney
Brakes ALHONGA HJ-811AD7
Brake levers Shimano
Crankset Suntour CW14-XCC-T102
Chainrings 42-34-24
Bottom bracket Neco cartridge
Cassette Shimano 12-28
Chain KMC-Z7
Headset FP threaded
Handlebar HL Alloy, 40 mm rise
Stem Promax adjustable quill
Grips/Bar tape Velo ERGO dual density
Saddle Opus Comfort
Seatpost Promax Alloy 27.2 x 300
Wheels/Rims Ace DW002
Hubs Joytech
Tires Kenda K935 700c x 45
Pedals FPD NW-420
Other Kickstand

Geometry

Size XS S M L
Size (cm)
Rider height (± 5 cm) 155 165 175 185
Rider height (± 2") 5'1" 5'5" 5'9" 6'1"
Seat tube 390 440 490 540
Top tube 559 581 598 609
Head tube 140 155 175 195
Head angle 70 70.5 70.5 70.5
Seat angle 72 71.5 71.5 71.5
Chainstays 460 460 460 460
BB drop 70 70 70 70
Stack 574 591 610 628
Reach 372 383 394 399
Wheelbase 706 743 780 817
Handlebar width 600 600 600 600
Stem length Adjustable Adjustable Adjustable Adjustable
Crank length 170 170 170 175
