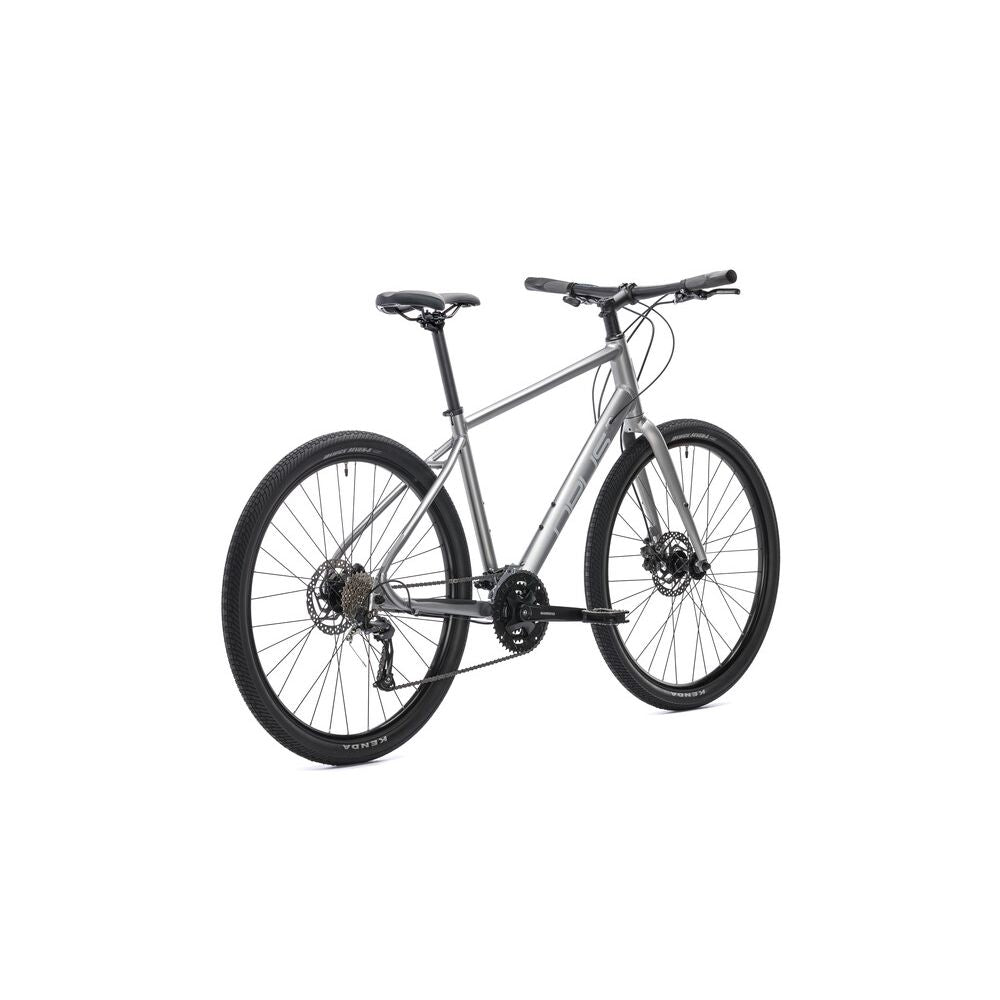

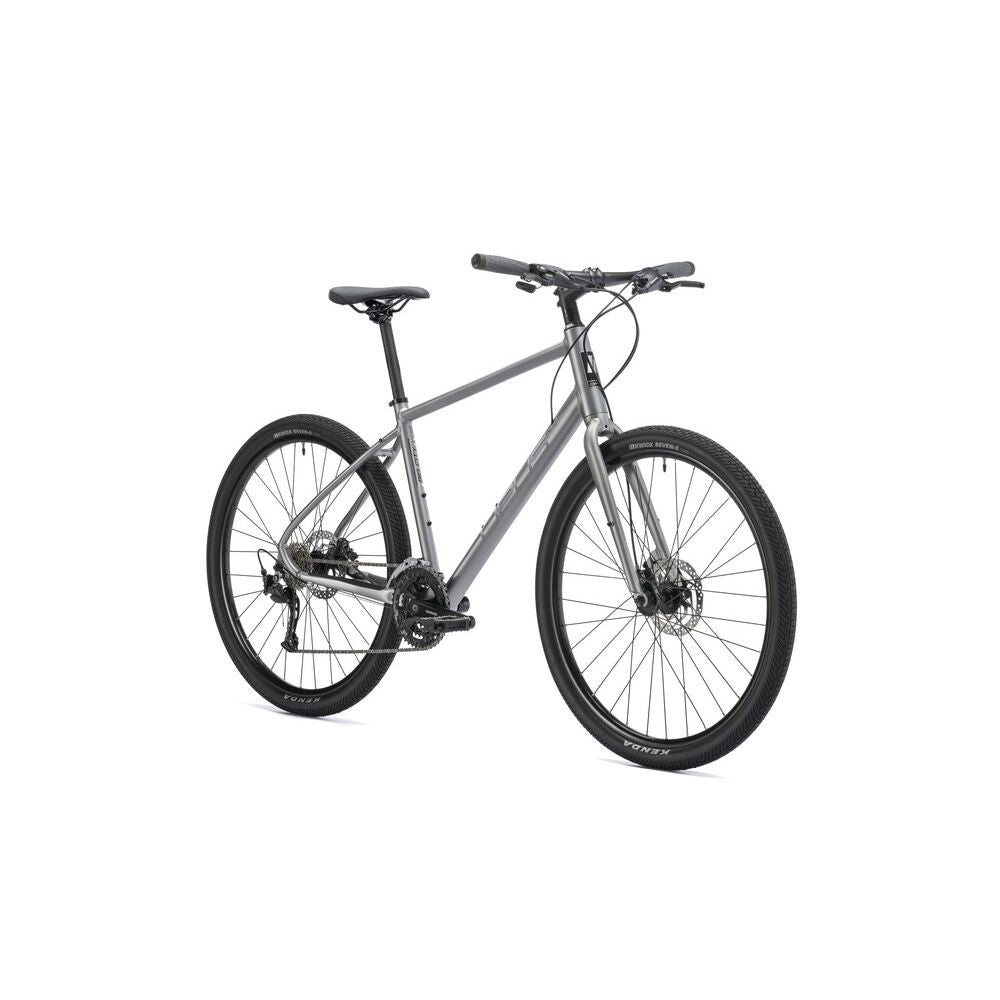

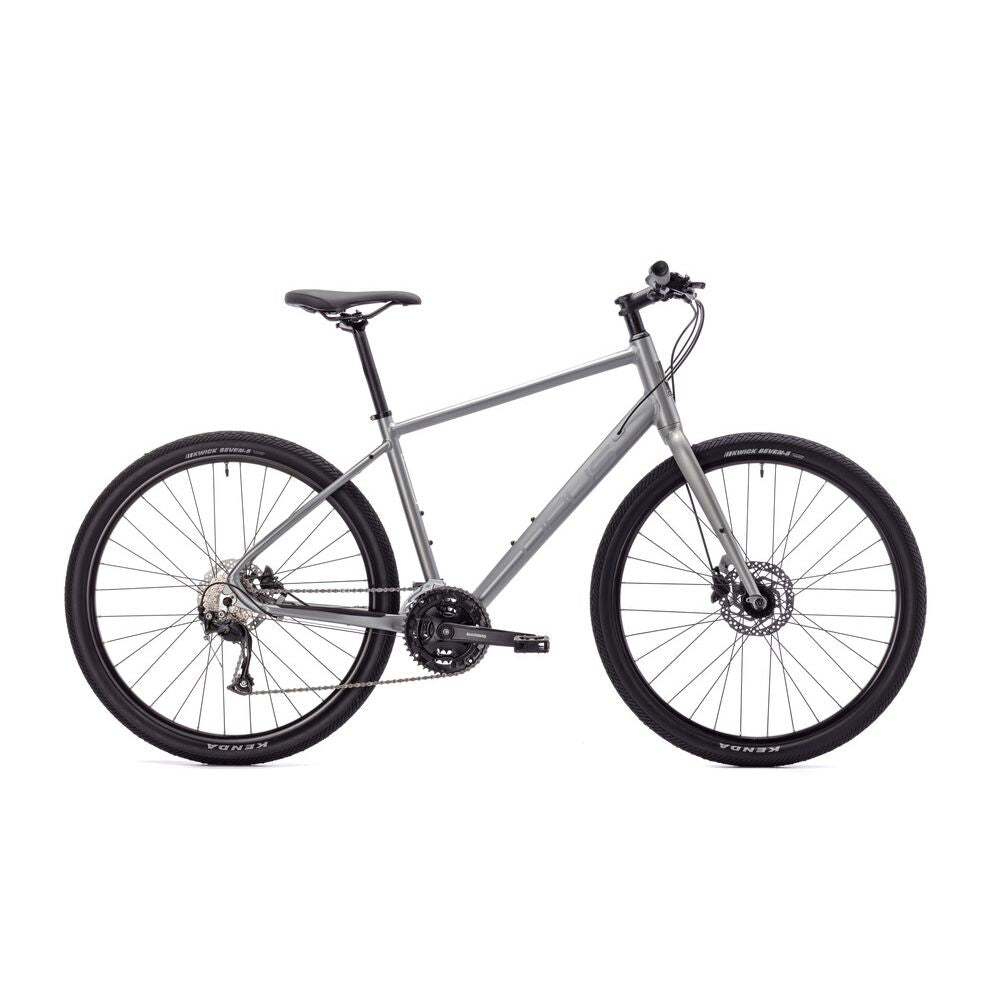

BIG CITY

URBAN OFFENSIVE

Knowing that riding in the city can be tough on your bike, we equipped the Big City with wide tires and hydraulic disc brakes. With a lively, responsive ride, it stands up to rough pavement, reckless drivers, and the uneven cobblestones of bike paths. With the Big City, showing up late to your destination will be a thing of the past.

Features

- Progressive geometry that lets you dominate traffic
- Lightweight alloy frame and fork
- Shimano 3x9 drivetrain
- Big 650 x 45 mm tires
- Internal cable routing

Specifications

Frame Meta 20 Aluminum
Fork Tapered aluminum 1-1/4 to 1-1/8 in
Sizes XS-S-M-L-XL
Shifters Shimano ST-EF505 3 x 9
Front derailleur Shimano Altus
Rear derailleur Shimano Altus
Brakes Shimano BR-MT200 hydraulic disc
Brake levers Shimano
Crankset Shimano FC-MT101
Chainrings 44-32-22
Bottom Bracket Shimano sealed cartridge
Cassette Shimano 11-28
Chain KMC-Z9
Headset FSA Orbit sealed integrated
Handlebar Alloy, 12 mm rise
Stem Promax
Grips/Bar Tape Velo ERGO dual density
Saddle Opus City
Seatpost Promax Alloy 27.2 x 300
Wheels/Rims Weinmann U28 650
Hubs Joytech
Tires Kenda Kwick Seven.5 650 x 45
Pedals FPD NW-247
Other Compatible with fenders and racks

Geometry

Size XS S M L XL
Frame size (cm) 38 42 460 500 54
Rider height (± 5 cm) 155 164 173 182 191
Rider height (± 2") 5’1” 5’4.5” 5’8” 5’11.5” 6'3"
Seat tube 380 420 460 500 540
Top tube 530 550 570 590 610
Head tube 148 163 183 198 213
Head angle 71 71.25 71.5 71.75 72
Seat tube angle 74.5 74 73.5 73 72.5
Chainstays 440 445 445 445 450
BB drop 65 65 60 60 60
Stack 560 575 590 605 620
Reach 375 385 395 405 415
Standover 726 752 783 808 834
Handlebar width 580 600 600 620 620
Stem length 70 80 80 90 100
Crank length 170 170 175 175 175
