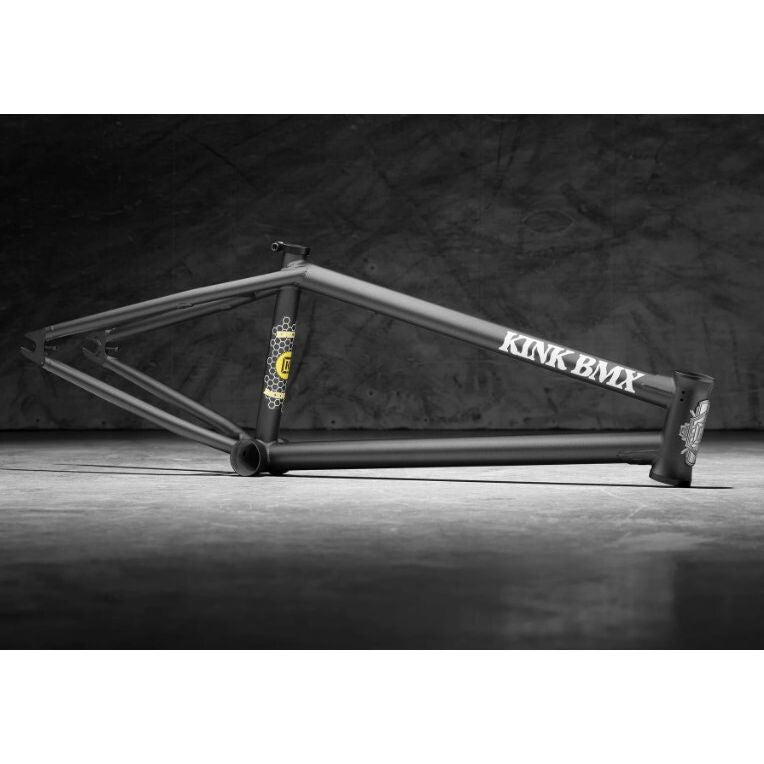

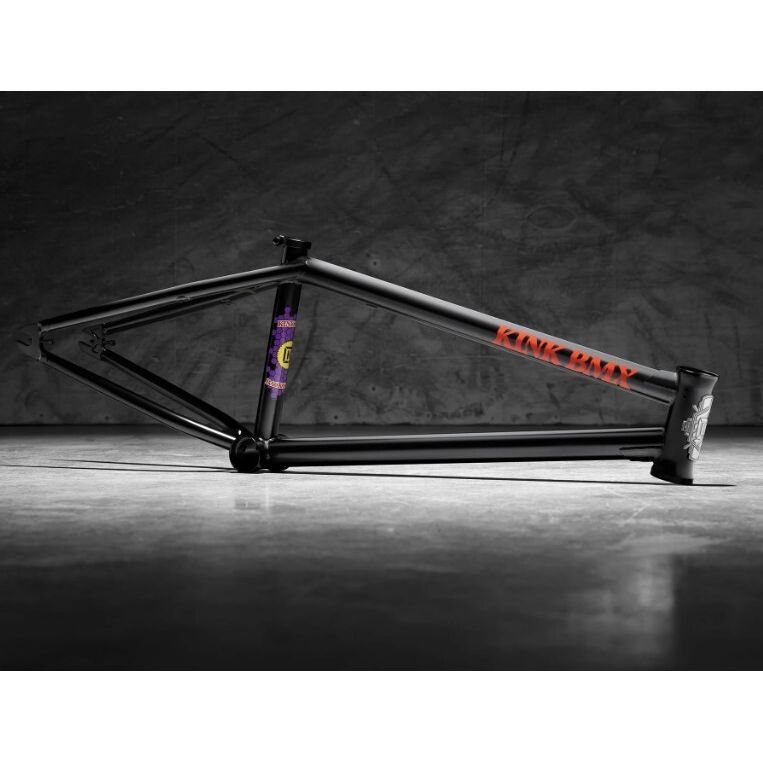

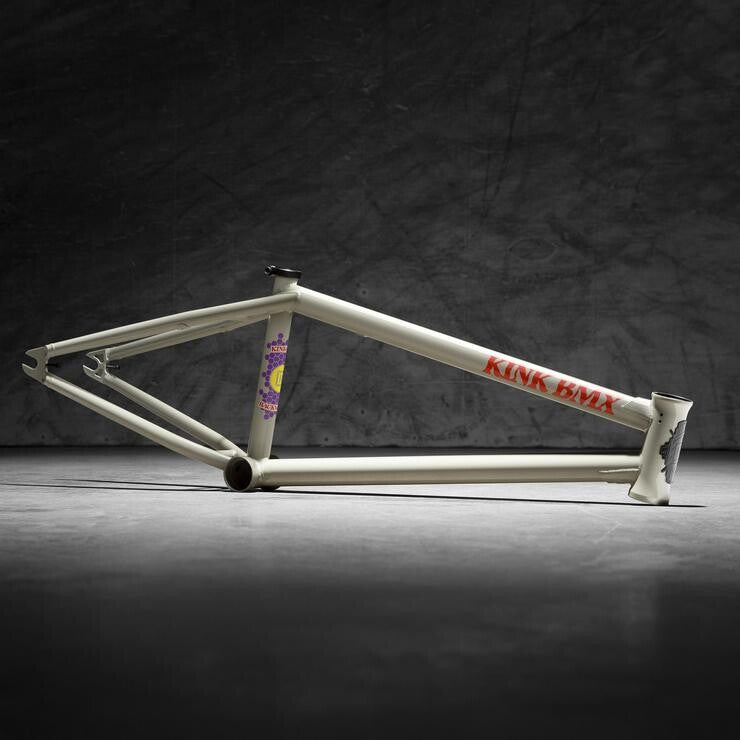

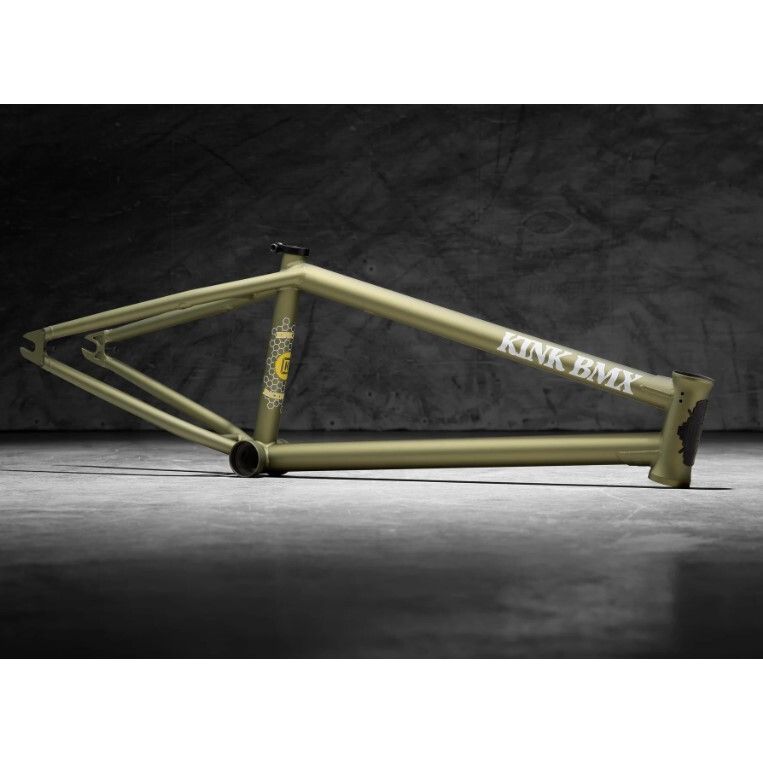

BACKWOODS FRAME

SHIPPING, RETURNS & PURCHASES

TECH SPEC

Material 100% Seamless Sanko 4130 Chromoly Tubing
Headtube Integrated Campy Spec
Dropouts Investment Cast with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Removable Through-Bolt Brake Mount System
Particulars Toptube and Downtube Gussets
Wide Stays for Big Tire Clearance
Includes Kink Master Clamp Seat Clamp
Tapered Seatstay and Chainstay Tubes
Simple Straight Seatstay and Chainstay Bridges
K-Brick Headtube Badge
Weight 4lb 15oz (20.75")

GEOMETRY

Toptube Sizes 20.75”, 21”, 21.25”, 21.5”
Chainstay Length 13.5" Slammed
Bottom Bracket Height 11.6"
Standover Height 9"
Headtube Angle 74.5°
Seattube Angle 71°
