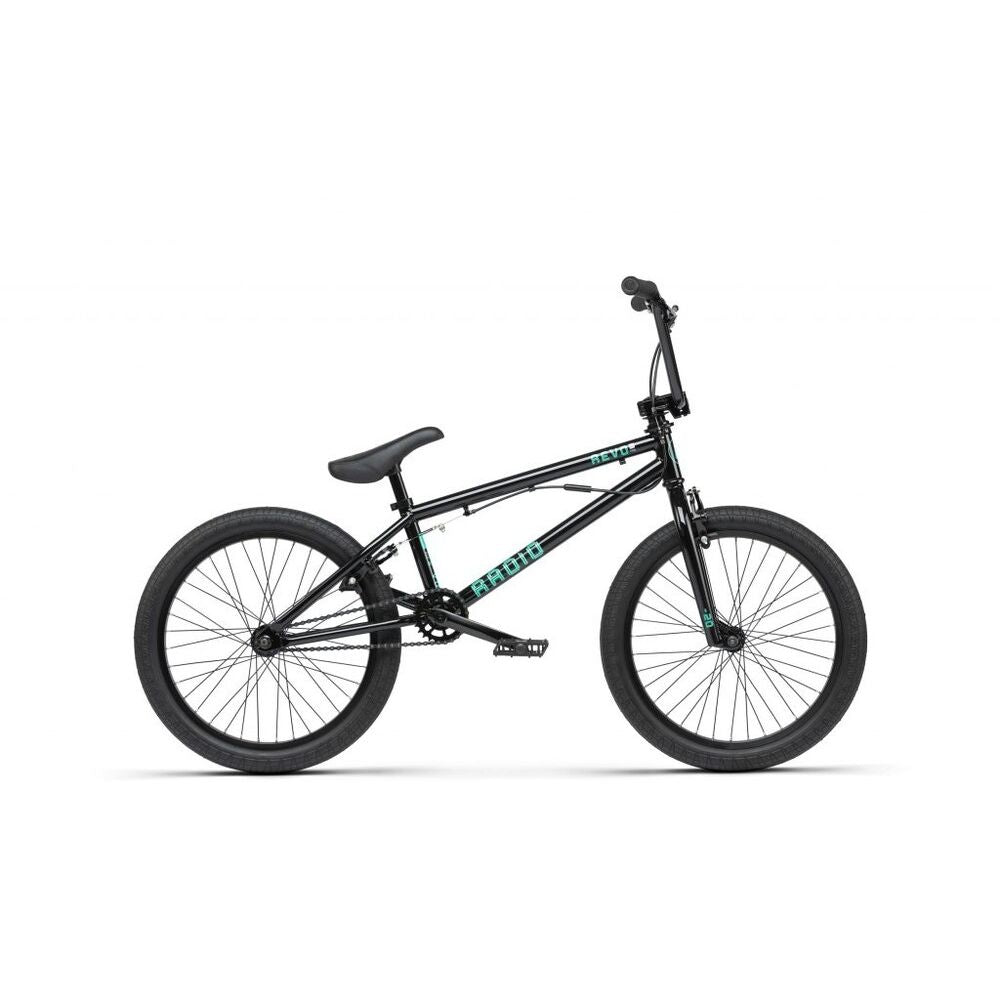

REVO 20 PRO FS

SHIPPING, RETURNS & PURCHASES

MODEL: REVO PRO FS 20 INCH
COLOR 1: black
COLOR 2: fresh mint

FRAME: RADIO "REVO PRO FS 20" frame, full 1020 hi-ten
FORK: RADIO "AM 20" fork, 1020 hi-ten, crmo steerer, welded pivots
BARS: RADIO "REVO PRO FS 20" bar, hi-ten
GRIPS: RADIO “AM” grips, flangeless, 150mm
STEM: SALT “AM” frontload stem, 48mm reach
HEADSET: FSA A-headset, loose ball
GYRO: SALT "AM" rotor with SALT "AM" rotor cables
LEVER: RADIO “AM” alloy brake lever, front & rear
BRAKES: RADIO "AM" alloy u-brakes, front & rear
CRANKS: RADIO “ROOKIE” 3pc forged crmo crank, 170mm
BB: RADIO "US" bb set, loose ball
PEDALS: RADIO “ROOKIE” nylon pedals
CHAIN: KMC "S1" chain
SPROCKET: RADIO "ROOKIE" steel sprocket, 25t
DRIVER: cassette driver, 9t
FRONT HUB: RADIO "ROOKIE" steel hub, lb, 3/8"s, 36h
REAR HUB: RADIO "ROOKIE" steel cassette hub, lb, 9T, 14mm axle, 36h
FRONT RIM: SALT “AM” straight single wall rim, 36h
REAR RIM: SALT “AM” straight single wall rim, 36h
SEAT: RADIO "CENTURY" combo seat, slim padded
SEAT POST: -
SEAT CLAMP: RADIO slim alloy seat clamp
TIRES: RADIO "ROOKIE" tires, 20"x2.2", front & rear
PEGS: -
WEIGHT: 13.04kg / 28.74lbs

FRAME GEOMETRY:

TOP TUBE LENGTH: 20"
CHAIN STAY LENGTH: 13"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71.5°
BOTTOM BRACKET HEIGHT: 11.75"
STANDOVER HEIGHT: 7.8"

HANDLEBAR GEOMETRY:

RISE: 8.75"
WIDTH: 29"
BACKSWEEP: 11°
UPSWEEP: 2°
