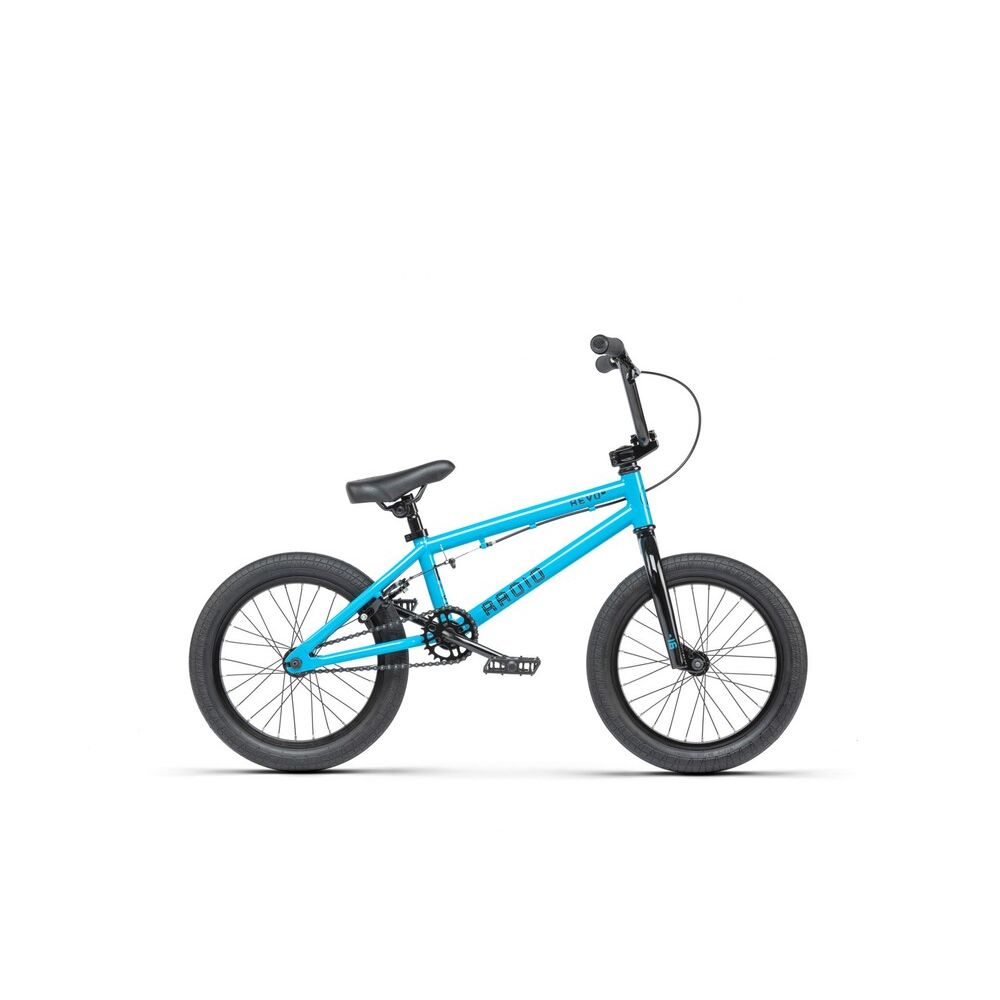

REVO 16

SHIPPING, RETURNS & PURCHASES

MODEL: REVO 16 INCH
COLOR 1: black
COLOR 2: surf blue

FRAME: RADIO "REVO 16" frame, full 1020 hi-ten
FORK: RADIO "ROOKIE 16" fork, hi-ten
BARS: RADIO "REVO 16" bar, hi-ten
GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm
STEM: SALT "JUNIOR" topload stem, 40mm reach
HEADSET: FSA A-headset, loose ball
GYRO:
LEVER: RADIO “JUNIOR 16” brake lever, alloy
BRAKES: RADIO "AM" alloy caliper brake, front / RADIO "AM-U" alloy u-brake, rear
CRANKS: RADIO "ROOKIE" 1pc forged crmo crank, 127mm
BB: RADIO "US" bb set, loose ball
PEDALS: RADIO “ROOKIE” nylon pedals
CHAIN: KMC "S1" chain
SPROCKET: RADIO "ROOKIE" steel sprocket, 25t
DRIVER: cassette driver, 9t
FRONT HUB: RADIO "ROOKIE" steel hub, lb, 3/8"s, 28h
REAR HUB: RADIO "ROOKIE" steel cassette hub, lb, 9T, 3/8" axle, 28h
FRONT RIM: SALT “AM” straight single wall rim, 28h
REAR RIM: SALT “AM” straight single wall rim, 28h
SEAT: RADIO "CENTURY" railed seat
SEAT POST: RADIO “AM” alloy seat post, 250mm
SEAT CLAMP: RADIO slim alloy seat clamp
TIRES: RADIO "ROOKIE" tires, 16"x2.1", front & rear
PEGS: -
WEIGHT: 9.95kg / 21.94lbs

FRAME GEOMETRY:

TOP TUBE LENGTH: 16"
CHAIN STAY LENGTH: 11.2"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71.5°
BOTTOM BRACKET HEIGHT: 9.75"
STANDOVER HEIGHT: 6.6"

HANDLEBAR GEOMETRY:

RISE: 6.8"
WIDTH: 23.6"
BACKSWEEP: 10°
UPSWEEP: 3°
