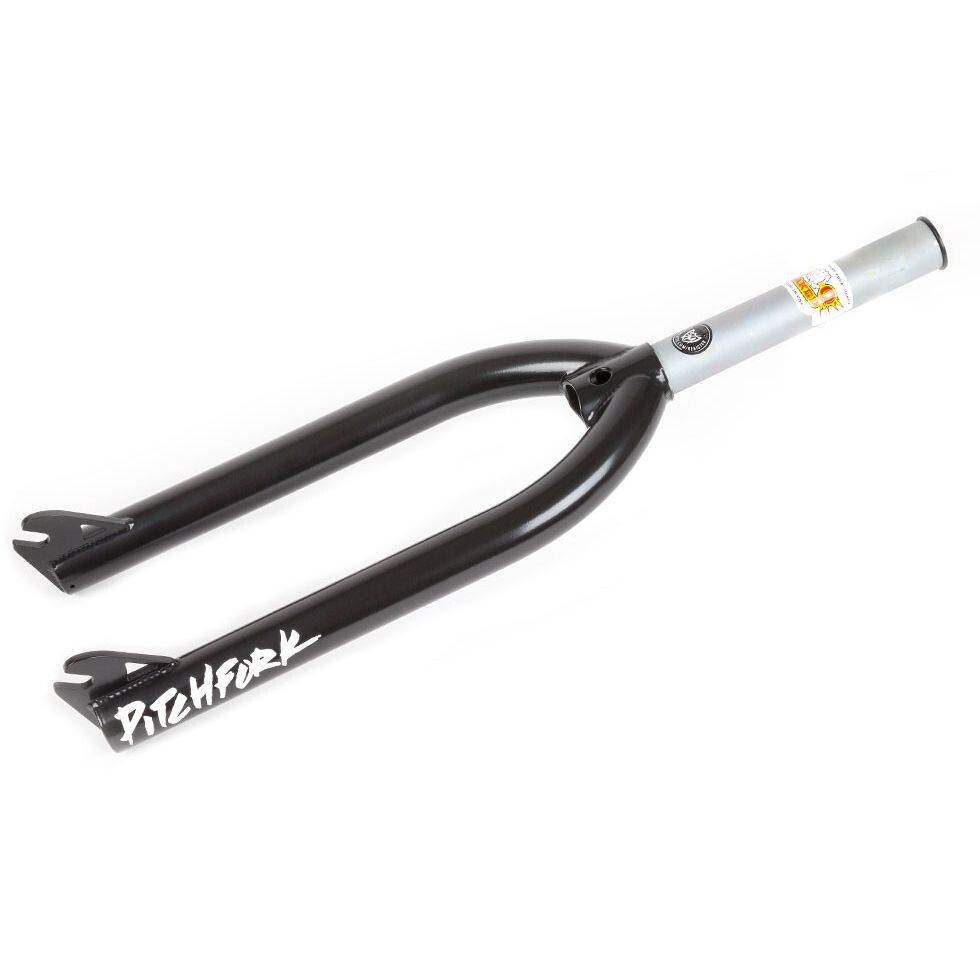

PITCHFORK

LIVRAISON, RETOURS et ACHATS

LEGS Double Butted, 4130 CrMo
DROPOUTS Laser Cut 4130 CrMo
STEERER TUBE 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH 162mm, 203mm (26?)
COMPRESSION M10 X 1.25 Thread – 6mm Allen Slot
(26? does not include compression nut/bolt)
AXLE TO CROWN HEIGHT 290.1mm (18?)
315.5mm (20?)
340.9mm (22?)
366mm (24?)
425mm (26?)
OFFSET 33mm
WEIGHT 2.16 lb (.97 kg) 18?
2.17 lb (.98 kg) 20?
2.42 lb (1.09 kg) 22?
2.52 lb (1.14 kg) 24?
2.90 lb (1.31 kg) 26?
HEAT TREAT 4Q Baked Post-Weld
