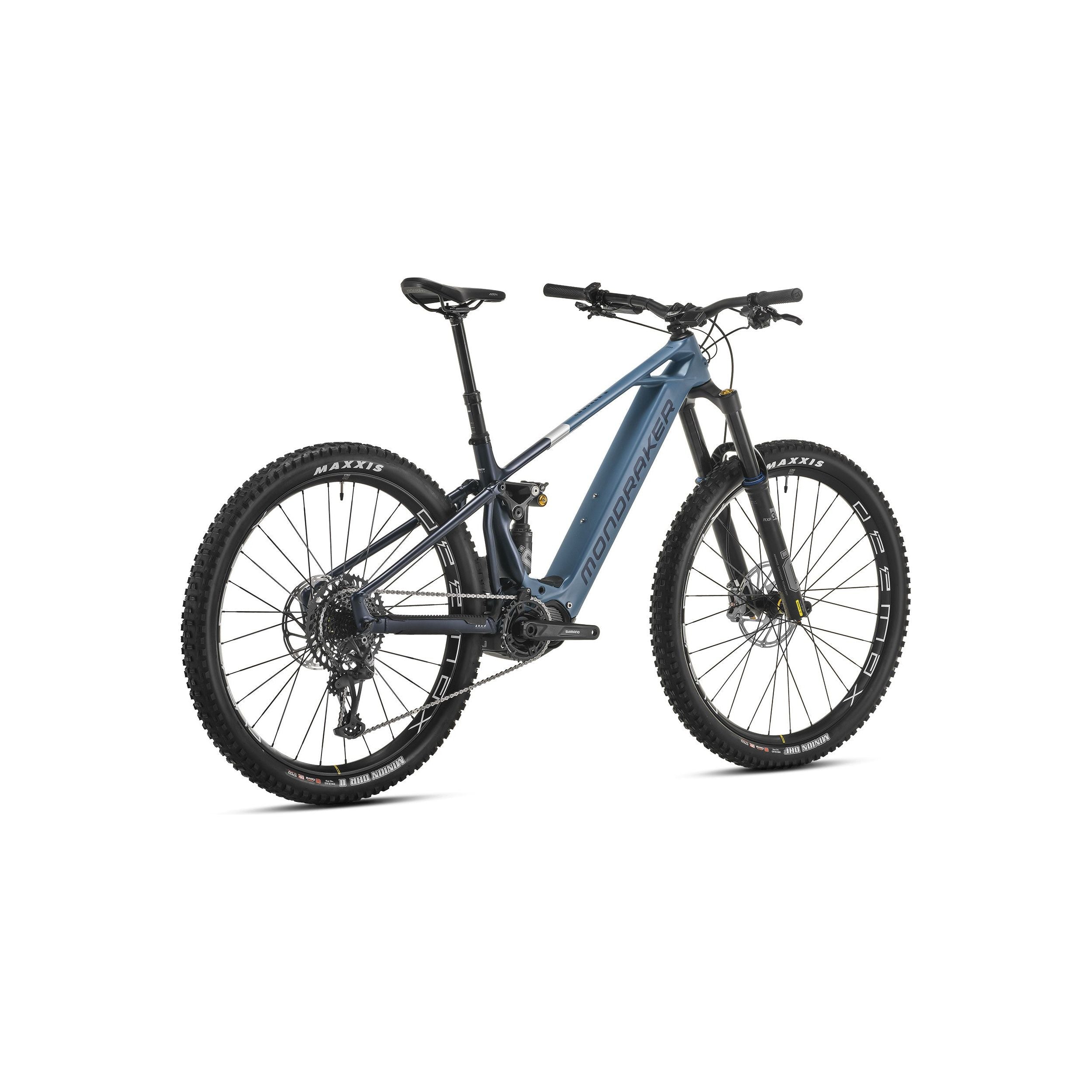

Mondraker Crusher R 2026
Le modèle milieu de gamme est équipé d'une fourche Öhlins RXF 38 M.2 29, d'un pédalier SRAM X01 Eagle, de freins CODE Bronze Stealth, d'une tige de selle ONOFF Pija (avec un débattement de 125 à 200 mm selon la taille du cadre) et de freins Maxxis Minion DHF/DHR II 2,6" EXO+. Disponible en 'Denim Blue - Navy Blue - Racing Silver'.
Spécifications
SpécificationsCadre
Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Tailles
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Amortisseur arrière
Öhlins TTX Air 205X65mm, high speed compression lever with climb mode, low-speed compression, rebound, air preload, Trunnion top mount, 25x10mm bottom bushings
Réglages suspension
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fourche
Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm, high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Jeu de direction
Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom
Potence
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Guidon
Onoff Krypton 1.0, rise 25mm, width 800mm, backsweep 9º, upsweep 5º, 31.8mm barbore
Poignées
Onoff Desert, 1 lock-on, 135mm
Tige de selle
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm
Selle
FIZIK Terra Aidon X5 145mm
Freins
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Leviers de freins
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Jantes
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Rayons
Mavic J-bend double butted, contactless lacing
Moyeux
Front: Mavic Boost 15x110mm, IS 6 bolts / Rear: Mavic Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Pneus
Front: Maxxis Minion DHF 29x2.6, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead / Rear: Maxxis Minion DHR II 29x2.6, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Manivelles
Shimano Steps FC-EM600 ebike, 165mm
Plateau
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Chaîne
Sram NX Eagle, 12s, Powerlock
Dérailleur arrière
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Manettes
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette
Sram XG-1275, 10-52T, 12s
Patte de dérailleur
Mondraker M068
Poids
53,1 lb
Affichage
Shimano EN600
Moteur
Shimano STEPS EP801
Batterie
Simplo internal 720Wh G3
