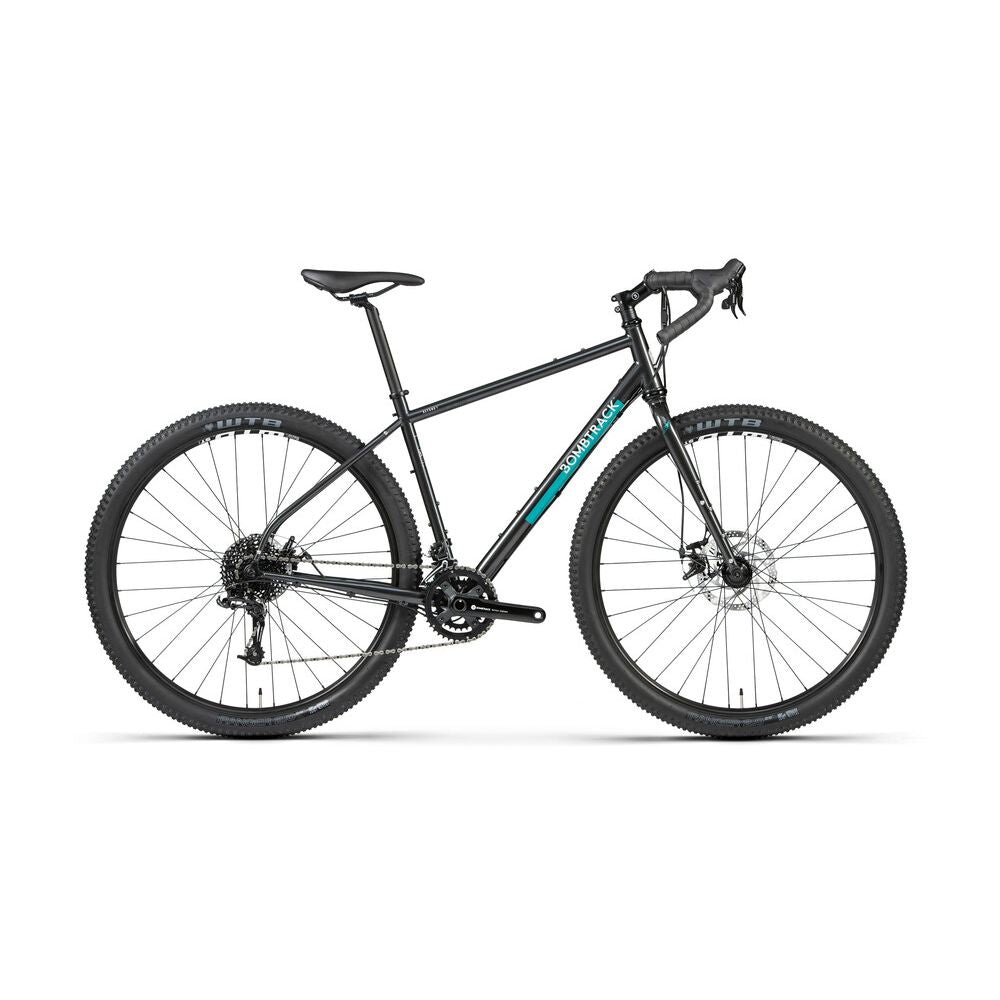

Model: BEYOND 1
Color 1: Glossy Metallic Black
Color 2: -
Frame: 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork: 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
Handlebar: BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare
Grips: BOMBTRACK COMMAND bar tape
Stem: BOMBTRACK WANDER forged aluminium stem, +17°
Headset: Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers: SRAM Apex double tap mechanic
Shifter: SRAM Apex double tap 2 x 10
Brakes: TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Crankset: BOMBTRACK AMES forged aluminium crank, 24 mm spindle
BB: BSA sealed BB, external cups
Pedals: -
Chain: KMC X10 chain, 1/2'' x 11/128'', 114L
Chainring: Aluminium / Steel, 40 / 28 T
Cassette: SRAM PG-1020 10-speed cassette, 11 - 36 T
Front derailleur: Microshift FD-M612-B
Rear derailleur: SRAM GX, long cage
Front hub: BOMBTRACK GRAD sealed, 6-bolt disc hub, 15 x 100 mm thru-axle
Rear hub: BOMBTRACK ARC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Front rim: WTB ST i23 double wall, TCS 2.0, 32h
Rear rim: WTB ST i23 double wall, TCS 2.0, 32h
Saddle: BOMBTRACK ORIGIN saddle
Seat post: BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 400 mm
Seat clamp: BOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm
Front tire: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
Rear tire: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
Fender: -
Rack: -
Light: -
Weight: 12,9 kg (M)
Maximum rider weight incl. luggage : 140 kg
ASTM riding condition classification: 2
